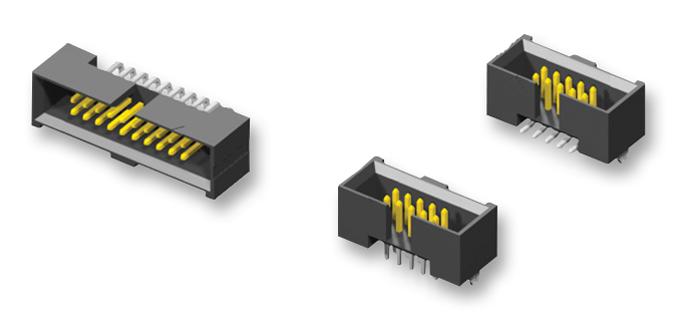

SAMTEC SHF12001LDSM Terminal Strip Connector
The SHF-120-01-L-D-SM is a 40-pole, two-row shrouded terminal strip with a 1.27mm pitch, featuring phosphor bronze contacts measuring 0.25 inches (6.35mm). Made from Liquid Crystal Polymer (LCP), it provides excellent temperature resistance from -55°C to +125°C, suitable for industrial and electronic applications. Compatible with FFSD series connectors, it includes a polarization notch for correct orientation, ensuring reliable electrical connections. This surface-mount terminal strip is lead-free, RoHS compliant, and designed for high-performance, durable circuit connections in demanding environments, without strain relief.
SAMTEC SHF12001LDSM Terminal Strip Connector Specifications:
- Number of Poles: 40
- Pitch: 1.27mm
- Contacts Material: Phosphor Bronze
- Contact Length: 6.35mm (0.25 inches)
- Insulator Material: Liquid Crystal Polymer
- Operating Temperature Range: -55°C to +125°C
- Mounting Type: Surface Mount (SM)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Polarization Notch: Yes
- Compatibility: FFSD series connectors
- Strain Relief: Not included
- Number of Rows: Two
- Traceability: Recognized for industrial use
- Design: Shrouded, reliable electrical connection
- Application: Circuit board pin connection, industrial electronics
Buy the Buy Samtec SHF12001LDSM Part Number SHF-120-01-L-D-SM Online
Secure your electronic and industrial circuit connections efficiently by purchasing the Samtec SHF12001LDSM terminal strip online. This 40-pole, two-row shrouded connector features a compact 1.27mm pitch and phosphor bronze contacts, ensuring optimal electrical performance. Made from durable Liquid Crystal Polymer, it operates reliably from -55°C to +125°C, perfect for industrial applications. Its RoHS compliance and lead-free solderability provide a safe, environmentally friendly solution. Purchase online now for quick delivery and dependable circuit connections in demanding environments.
Buy Samtec SHF12001LDSM now and experience high-reliability electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SHF12001LDSM?
You can click on the BUY or RFQ button to purchase SHF12001LDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF12001LDSM?
You can download the SHF12001LDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF12001LDSM?
SAMTEC
