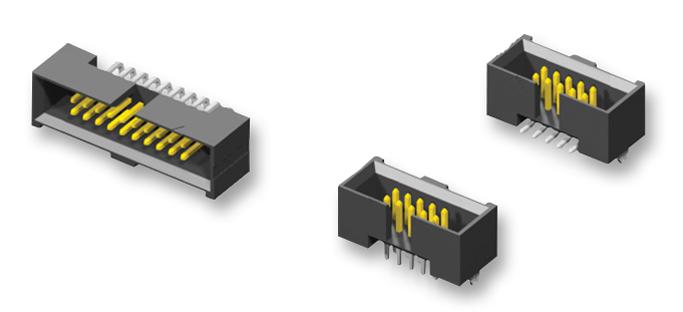

SAMTEC SHF12001LDTH Signal Terminal Strip
The SHF-120-01-L-D-TH is a 40-pole, two-row shrouded terminal strip with a 1.27mm pitch, featuring phosphor bronze contacts and Liquid Crystal Polymer insulation. It is designed for through-hole mounting, compatible with FFSD series connectors without strain relief, and operates between -55°C and +125°C. The terminal strip includes a polarization notch for correct orientation, making it ideal for industrial and electronic applications requiring reliable and durable connections with a 1.27mm pitch and a high-temperature range.
SAMTEC SHF12001LDTH Signal Terminal Strip Specifications:
- Pitch: 1.27 mm
- Number of poles: 40
- Number of rows: Two
- Contact Material: Phosphor Bronze
- Contact Thickness: 10 microns
- Insulator Material: Liquid Crystal Polymer
- Temperature Range: -55°C to +125°C
- Mounting Style: Through-hole
- RoHS Compliant: Yes
- Polarization feature: Notch for orientation
- Plating: Sn or Au over Ni
- Compatibility: FFSD series connectors (without strain relief)
- Processing: Lead-Free Solderable
- Additional Features: Polarized position, designed for industrial use
Buy the Samtec Series ESHF Signal Terminal Strip: SHF12001LDTH
Purchase the Samtec SHF12001LDTH terminal strip online today and enjoy fast delivery and competitive prices. This 40-pole, two-row shrouded connector offers a 1.27mm pitch, ideal for industrial automation and electronic wiring. Crafted with phosphor bronze contacts and Liquid Crystal Polymer insulation, it ensures durability and high-temperature operation from -55°C to +125°C. Compatible with FFSD connectors without strain relief, making your assembly more straightforward. Secure your reliable connections now with this high-quality, lead-free terminal strip available for quick online purchase.
Buy Samtec SHF12001LDTH now and experience unmatched reliability and performance with high-density terminal connections.
Frequently Asked Questions
Where can I buy SAMTEC SHF12001LDTH?
You can click on the BUY or RFQ button to purchase SHF12001LDTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SHF12001LDTH?
You can download the SHF12001LDTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SHF12001LDTH?
SAMTEC
