SAMTEC SIB10202FS PCB Connector
The SIB series connectors feature phosphor bronze contacts with gold or tin over nickel plating, rated for 2.24A at 80°C. They operate from -55°C to +125°C and are RoHS compliant. The insulator is made of black liquid crystal polymer (LCP) with options for different contact positions. Suitable for PCB mountings, these connectors have precise coplanarity and solderability, ensuring reliable connections in electronic assemblies for high-performance applications.
SAMTEC SIB10202FS PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50µm, 1.27µm)
- Current Rating: 2.24A per contact at 80°C
- Operating Temperature Range: -55°C to +125°C
- Normal Force: 111 grams (1.09 N) per contact
- RoHS Compliant: Yes
- Number of Positions: 2 to 30
- Coplanarity: Max 0.10 mm (0.004") for 2-19 positions, Max 0.15 mm (0.005") for 20-30 positions
- Processing: Solderable, Lead-Free, RoHS compliant

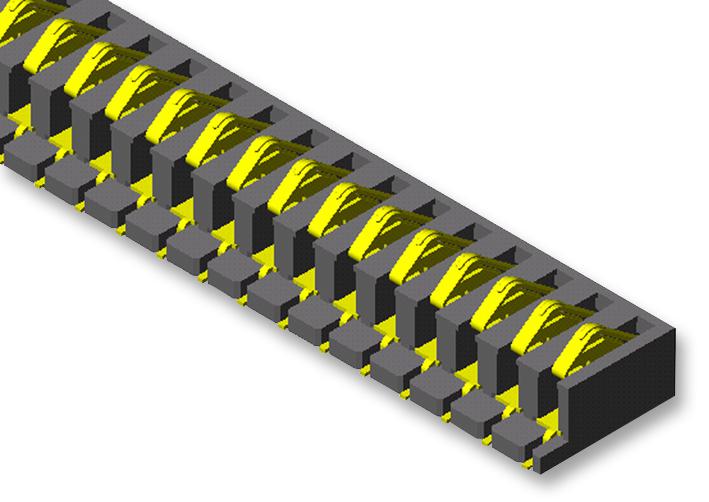

Buy the Buy Samtec SIB Series PCB Connector Part Number SIB10202FS Online
Secure your SIB10202FS PCB connector online today to benefit from high durability, precise contact alignment, and RoHS compliance. Designed for demanding electronic applications, this connector features phosphor bronze contacts with gold or tin over nickel plating, ensuring excellent conductivity and corrosion resistance. Its wide temperature range from -55°C to +125°C makes it ideal for industrial and commercial electronics. Easy to solder and install, the SIB series provides dependable performance and versatility across various PCB mounting configurations, making it a smart choice for professional electronic assembly and design projects.
Order your Samtec SIB10202FS PCB connector today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SIB10202FS?
You can click on the BUY or RFQ button to purchase SIB10202FS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SIB10202FS?
You can download the SIB10202FS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SIB10202FS?
SAMTEC
