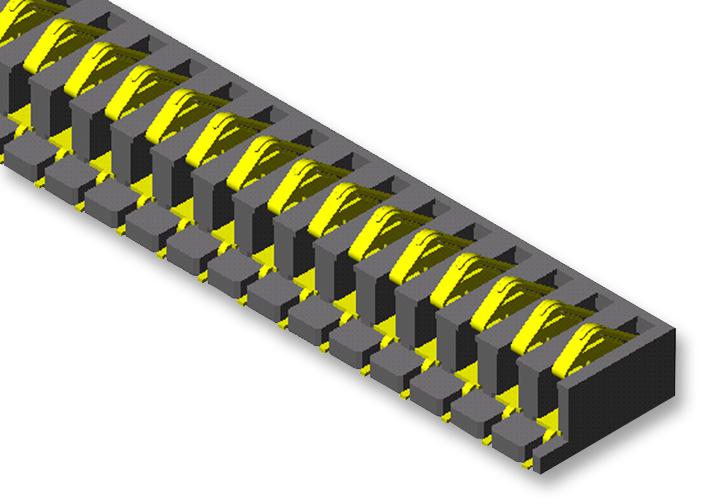

SAMTEC SIB10202FSLC PCB Connector
The SIB10202FSLC is a high-reliability connector featuring phosphor bronze contacts with gold or tin over nickel plating, suitable for PCB mounting in demanding environments. Constructed with black liquid crystal polymer (LCP) insulators, it offers excellent thermal stability from -55°C to +125°C and RoHS compliance. Designed for precise PCB layouts, it supports 2 to 30 positions with optional configurations. The connector provides a current rating of 2.24 A per contact at 80°C ambient, making it ideal for industrial and electronic applications requiring durable and precise connections.
SAMTEC SIB10202FSLC PCB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50 μ
- SIB 10202FSLC connector supports 2 to 30 positions with optional configurations.
- Operating Temp Range: -55°C to +125°C
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Current Rating: 2.24 A per contact at 80°C ambient
- Mechanical: Normal Force: 111 grams (1.09 N) per contact
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, 0.10 mm (0.004") max coplanarity, 0.15 mm (0.005") max for styles 20-30
- Dimensions: Supports various lengths, with some sizes non-standard and non-returnable
Buy the Samtec SIB10202FSLC – Reliable PCB Connector for Industrial Applications
Purchase the Samtec SIB10202FSLC online today to secure a durable and high-performance connector designed for demanding industrial applications. Featuring phosphor bronze contacts with gold or tin plating, it ensures reliable electrical connections. Constructed with black liquid crystal polymer insulators, it offers excellent thermal stability from -55°C to +125°C and RoHS compliance. With a current rating of 2.24 A per contact at 80°C ambient, this connector is ideal for PCB assembly, supporting 2 to 30 positions with various options. Buy now and enhance your project’s reliability!
Order your Samtec Series SIB10202FSLC connector today and enjoy the dependable, high-quality connection solution for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SIB10202FSLC?
You can click on the BUY or RFQ button to purchase SIB10202FSLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SIB10202FSLC?
You can download the SIB10202FSLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SIB10202FSLC?
SAMTEC
