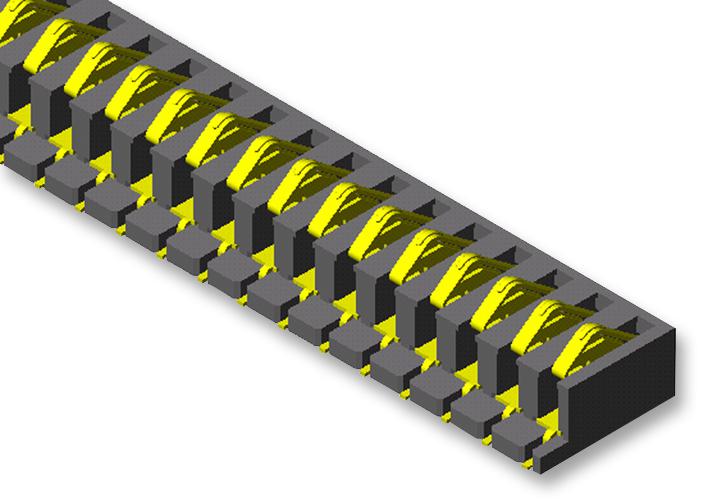

SAMTEC SIB10802FSLC high-density PCB socket
The SIB Series is a high-quality, RoHS-compliant surface-mount socket featuring black liquid crystal polymer insulators and phosphor bronze contacts plated with gold or tin over nickel for enhanced durability. Designed for vertical mating, it can carry up to 2.8 A per pin with a temperature range of -55°C to +125°C. Suitable for PCB applications, this socket supports multiple positions, with options for various sizes and configurations, ensuring reliable electrical connections for demanding electronic projects.
SAMTEC SIB10802FSLC high-density PCB socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer (LCP)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 2.8 A per pin
- Operating Temperature Range: -55°C to +125°C
- Processing: Lead-Free Solderable, SMT Lead Coplanarity (0.10 mm) max
- Number of Positions: varies per model, supporting multiple pin configurations
- RoHS Compliant: Yes
- Note: Designed for vertical mating only, with some sizes and options non-standard
- Dimensions: Detail varies; consult www.samtec.com for comprehensive PCB layouts and specifications
Buy the Samtec Series SIB Socket: SIB10802FSLC
Discover the high-density PCB socket that offers exceptional durability and electrical performance. Featuring phosphor bronze contacts with gold or tin plating, RoHS compliance, and a wide operating temperature range, it ensures reliable connections in demanding electronic environments. Perfect for vertical mounting, the socket supports multiple pin configurations and is lead-free solderable. Elevate your electronic assembly with this robust, RoHS-compliant socket designed for demanding industrial and consumer applications, ensuring longevity, precision, and unmatched quality in your projects.
Buy Samtec SIB10802FSLC now and experience unmatched reliability and performance for high-temperature PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC SIB10802FSLC?
You can click on the BUY or RFQ button to purchase SIB10802FSLC from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SIB10802FSLC?
You can download the SIB10802FSLC datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SIB10802FSLC?
SAMTEC
