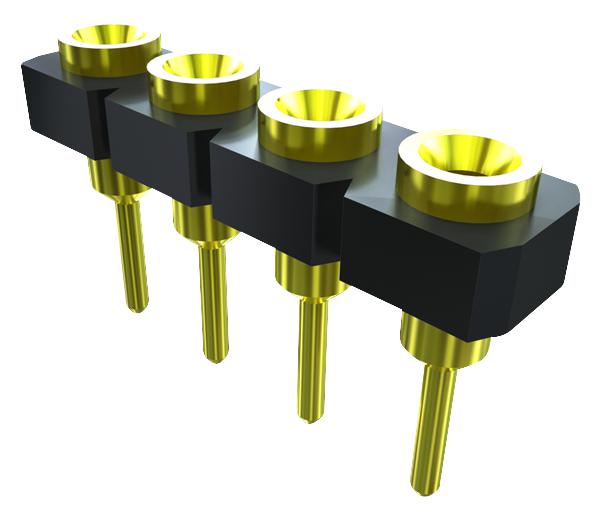

SAMTEC SL101G19 Low Profile Socket Strips
The SL series from Samtec features low-profile, single-row screw machine socket strips designed for through-hole mounting, compatible with various Samtec connector series. With a 2.54mm pitch and a micro socket hollow leg design, they provide low insertion force for ease of assembly. Made of beryllium copper contacts in a machined brass shell with 30-micron gold plating, they operate effectively from -55°C to 125°C. The black glass-filled polyester insulator, four lead styles, and low contact resistance of 10 milliohms ensure reliable performance in industrial applications. Compliant with UL E111594 standards.
SAMTEC SL101G19 Low Profile Socket Strips Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass
- Plating: Au over 30 microns Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard = 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Force = 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard = 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Force = 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Lead Diameter Accepted: 0.015 in to 0.020 in (0.38 mm to 0.51 mm)
- Contact Length: 0.083 in (2.11 mm)
- Insertion Depth: 0.105 in (2.67 mm)
- RoHS Compliant: Yes
- Compatible with: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
Buy the Buy Samtec Low Profile Socket Strips Part Number SL101G19 Online
Enhance your assembly with Samtec's low-profile socket strips, featuring 2.54mm pitch, gold-plated contacts, and a micro socket design for effortless mating. Designed for through-hole mounting, these components are made of durable black glass-filled polyester and offer excellent performance from -55°C to 125°C. Choose from four precision screw-machined lead styles, with low contact resistance of 10 milliohms, ensuring dependable electrical connectivity. Ideal for industrial and high-reliability applications, these socket strips are RoHS compliant and easy to integrate into your systems.
Buy Samtec SL101G19 now and experience unmatched reliability and performance with low-profile, high-temperature rated socket strips suitable for industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SL101G19?
You can click on the BUY or RFQ button to purchase SL101G19 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL101G19?
You can download the SL101G19 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL101G19?
SAMTEC
