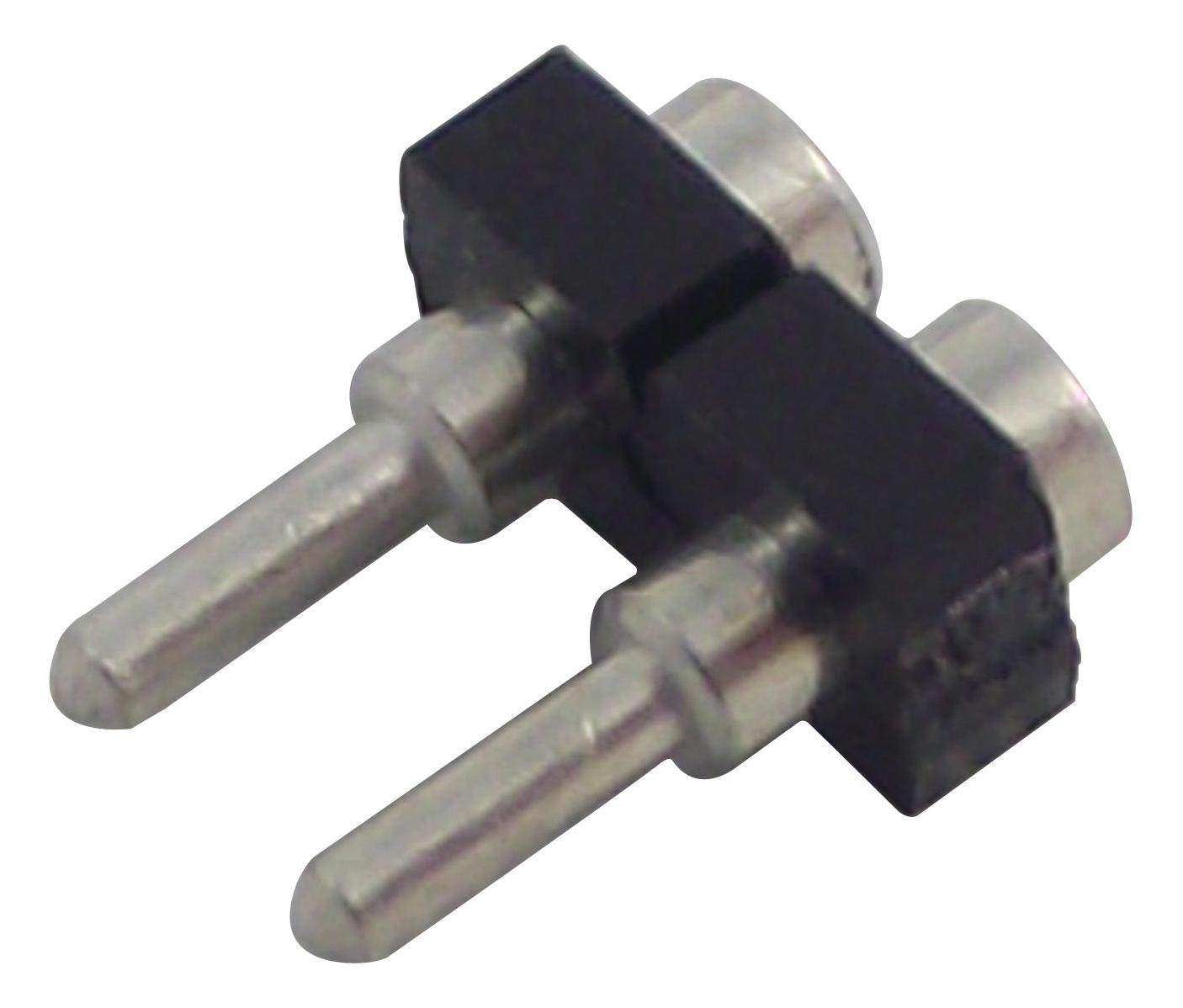

SAMTEC SL102T10 Low Profile Socket Strip
The SL series from Samtec features low-profile, through-hole socket strips suitable for various industrial applications. Designed for precise mounting, these connectors have a 2.54mm pitch spacing, accommodate 1 to 32 contacts per row, and include a hollow leg design for easy assembly. Contacts are gold-plated, made from beryllium copper within a machined brass shell, ensuring excellent electrical performance with a contact resistance of 10 milliohms. Made with a black glass-filled polyester insulator, these sockets operate effectively between -55°C and 125°C. They are compatible with Samtec’s TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series, offering four precision lead styles and RoHS compliance.
SAMTEC SL102T10 Low Profile Socket Strip Specifications:
- Pitch: 2.54 mm (0.100")
- Contact Material: Beryllium Copper (BeCu)
- Shell Material: Brass
- Insulator Material: Black Glass Filled Polyester
- Operating Temp Range: -55°C to +125°C
- Plating: Gold over 50μ" (1.27μm) Nickel or Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90z (2.50 N) avg., 16oz (4.45 N) max; Low Force 25oz (0.70 N) avg.
- Withdrawal Force: Standard 2.5oz (0.70 N) avg., Low Force 2oz (0.56 N) avg.
- Number of Contacts: 1 to 32 per row
- RoHS Compliance: Yes
Buy the Samtec Series SL Low Profile Socket: SL102T10
Discover the dependable performance of the Samtec Series SL low-profile socket strips. With a 2.54mm pitch, gold-plated contacts, and a black glass-filled polyester insulator, these sockets are ideal for vertical mounting in compact designs. They support multiple contact configurations and are compatible with popular Samtec series connectors. Constructed from high-quality materials like beryllium copper and brass, they deliver excellent electrical performance and durability across a wide temperature range. Order online now for fast delivery and enhanced connection reliability in your projects.
Order your Samtec Series SL102T10 low-profile socket strip today and ensure reliable, compact connectivity for your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SL102T10?
You can click on the BUY or RFQ button to purchase SL102T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL102T10?
You can download the SL102T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL102T10?
SAMTEC
