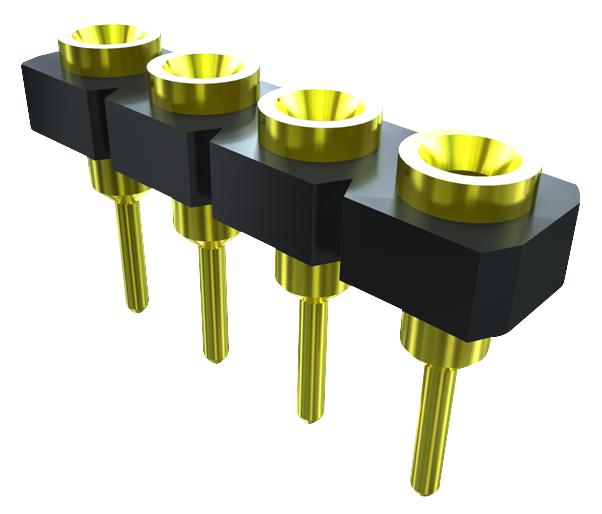

SAMTEC SL105TT10 Low Profile Socket
The SL105TT10 is a low-profile, precision socket designed for industrial and electronic applications requiring minimal height. It features four screw machined lead styles, offers excellent low insertion force options, and is compatible with various mating connectors. The insulator is made of black glass-filled polyester, with contact/shell materials of BeCu and Brass. The socket supports operating temperatures from -55°C to +125°C with gold plating and up to +105°C with tin. Its design ensures reliable insertion and withdrawal forces, RoHS compliance, and wave solderability, ideal for space-constrained electronic assemblies.
SAMTEC SL105TT10 Low Profile Socket Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50μ" (1.27 μm) Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ (max at 0.5N)
- Insertion Force: Standard = 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Insertion Force = 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard = 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Insertion Force = 2 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Lead Diameter Accepted: 0.015" to 0.020" (0.38 mm to 0.51 mm)
- Insertion Depth: 0.065" to 0.170" (1.65 mm to 4.32 mm)
- Lead Length: Up to 0.105" (2.67 mm)
- RoHS Compliant: Yes
- Wave Solderable: Yes
Buy the Samlec SL105TT10 – Reliable Low-Profile Connectors for Industrial Applications
Enhance your electronic assemblies with the low-profile socket designed for space-efficient, reliable connections. The SL105TT10 offers advanced low insertion force options, RoHS compliance, and high-temperature operation from -55°C to +125°C. Its durable construction features BeCu and Brass contact materials with gold or tin plating, ensuring corrosion resistance and longevity. Suitable for various PCB applications, this socket provides easy insertion and withdrawal, supporting tight spaces and demanding environments. Perfect for experienced engineers seeking quality and precision in electronic component connections.
Order your Samlec Series SL105TT10 today and give your electronic projects the dependable low-profile connection they deserve.
Frequently Asked Questions
Where can I buy SAMTEC SL105TT10?
You can click on the BUY or RFQ button to purchase SL105TT10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL105TT10?
You can download the SL105TT10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL105TT10?
SAMTEC
