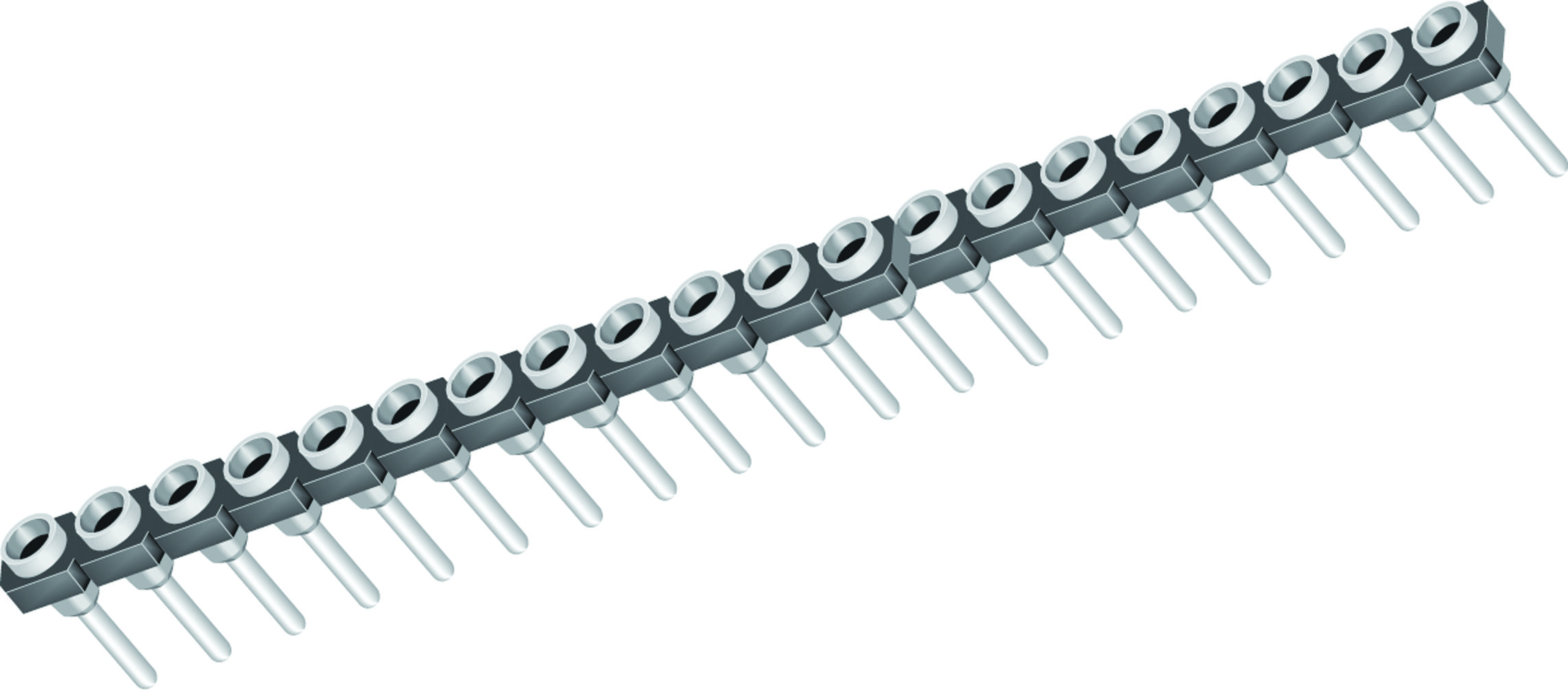

SAMTEC SL108T12 Low-Profile PCB Socket
The SL series from Samtec features low-profile, single-row socket strips designed for PCB connections. Suitable for industrial and electronics applications, these through-hole sockets support high-temperature operation up to 125°C with gold-plated contacts and black glass-filled polyester insulators. They offer a pitch of 2.54mm, with four precision screw-machined lead styles, and are compatible with multiple Samtec connector series including TS, TD, and BHS. The contacts are made of BeCu/brass with Au or Sn plating, featuring low contact resistance of 10 milliohms for reliable electrical performance.
SAMTEC SL108T12 Low-Profile PCB Socket Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50µm Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 9 oz (2.50 N) avg., Max 16 oz (4.45 N), Low Force 25 oz (0.70 N) avg., Max 5.5 oz (1.53 N)
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg., Min 1.5 oz (0.42 N), Low Force 2.0 oz (0.56 N) avg., Min 0.5 oz (0.14 N)
- Pitch: 2.54 mm (.100 inch)
- Number of Contacts per Row: 1 to 32
- Lead Style: Hollow Leg, Micro Socket
- RoHS Compliant: Yes
- UL Certification: UL E111594
- Dimensions: Contact length varies with style, typical contact length 1.58 mm (0.062 inch), insertion depth up to 3.86 mm (0.152 inch)
- Compatibility: Mates with BBL, BDL, TS, TD, HTS, BBS, BBD, BHS series
- Certifications: UL Listed, RoHS Compliant
Buy the Samtec Series SL PCB Socket Strip: SL108T12
Purchase the Samtec SL series low-profile PCB socket strip online today. Designed for reliable, high-temperature connections with 2.54mm pitch, gold-plated contacts, and multiple lead styles. These sockets are ideal for compact electronic assemblies, offering easy installation, excellent electrical performance, and RoHS compliance. Choose from various contact styles, including hollow leg and micro socket, to meet your specific application needs. Order now to ensure your project benefits from durable, high-quality PCB connection solutions that are compatible with a wide range of industry-standard series.
Get Samtec SL108T12 today—built for precision and long-lasting durability in high-temperature PCB connections.
