SAMTEC SL109G12 Socket Strip

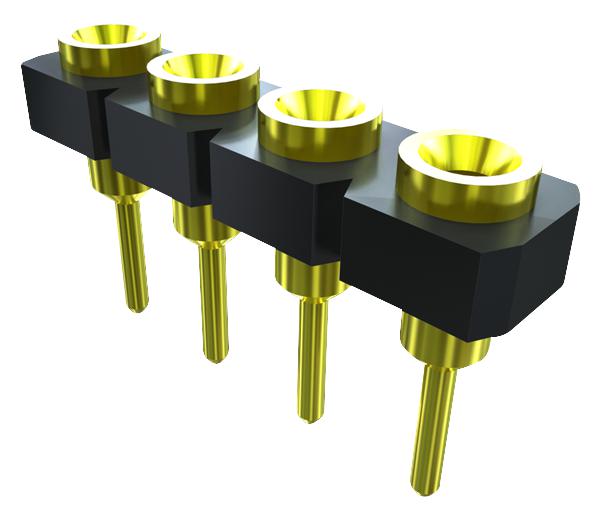

The SL series from Samtec are low-profile, single-row socket strips designed for through-hole mounting, with compatibility across various connector series like TS, TD, and BHS. Featuring a 2.54mm pitch spacing, they offer options for 1 to 32 contacts per row and are oriented vertically. Constructed from black glass-filled polyester insulators and beryllium copper contacts in a machined brass shell, these sockets provide reliable electrical performance with gold plating of 30 microns and a contact resistance of 10 milliohms. Suitable for industrial applications, they operate from -55°C to 125°C across four precision lead styles, with UL and RoHS compliance.
SAMTEC SL109G12 Socket Strip Specifications:
- Pitch spacing: 2.54 mm
- Contact Material: Beryllium Copper
- Shell Material: Brass
- Insulator Material: Black Glass Filled Polyester
- Plating: Gold over 50 microns Ni or Sn
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Force: 9 oz (standard), 25 oz (low force)
- Withdrawal Force: 2.5 oz (standard), 2.0 oz (low force)
- Number of contacts per row: 1 to 32
- Orientations: Vertical
- UL and RoHS compliant
- Lead Styles: Four precision screw-machined options
- Compatibility: Mates with series BBL, BDL, TS, TD, BHS, BBS, and more.
Buy the Samlec SL Series – Reliable Socket Connectors for Industrial Applications
Purchase the Samtec SL series socket strips online now to ensure high performance, durability, and compatibility with your industrial applications. Designed with low profile and multiple lead options, these socket strips feature gold-plated contacts and a robust insulator material for reliable electrical connections. Perfect for through-hole mounting in demanding environments, they support a temperature range from -55°C to 125°C and are RoHS compliant. Order today to enhance your electronic assembly with trusted quality and precision engineering from Samlec.
Get Samlec SL series sockets today—built for precision and long-lasting durability in industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SL109G12?
You can click on the BUY or RFQ button to purchase SL109G12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL109G12?
You can download the SL109G12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL109G12?
SAMTEC
