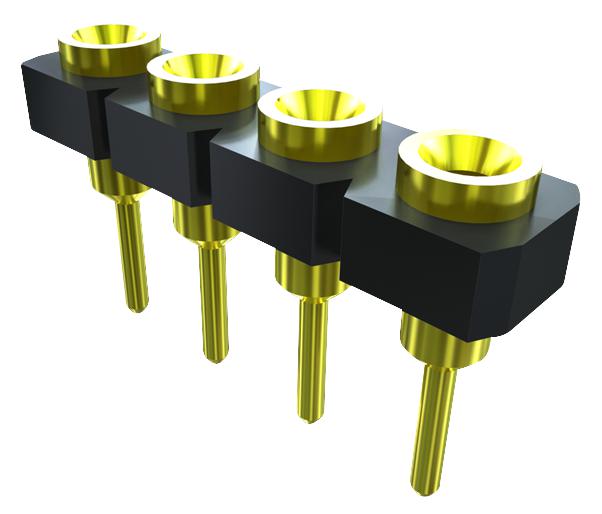

SAMTEC SL110G12 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips designed for through-hole mounting in industrial applications. These connectors accommodate 2.54mm pitch spacing with configurations from 1 to 32 contacts per row, offering vertical orientation and a choice of four precision screw-machined lead styles, including hollow-leg micro sockets. Constructed with black glass-filled polyester insulators and BeCu contacts with 30-micron gold or tin plating, they operate from -55°C to +125°C. Compatibility with multiple Samtec series, low insertion force options, and RoHS compliance make these socket strips ideal for compact, high-temperature electronics requiring reliable connections.
SAMTEC SL110G12 Socket Strip Specifications:
- Pitch: 2.54mm (0.100")
- Contacts per row: 1 to 32
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu (Beryllium Copper)
- Shell Material: Brass
- Plating: Gold or Tin over 50 micron Nickel
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90 oz (2.50 N) on average, Max 16 oz (4.45 N); Low Force 25 oz (0.70 N) on average, Max 5.5 oz (1.53 N)
- Withdrawal Force: Standard 2.5 oz (0.70 N) on average, Min 1.5 oz (0.42 N); Low Force 2.0 oz (0.56 N) on average, Min 0.5 oz (0.14 N)
- RoHS Compliant: Yes
- Compatibility: Mates with Samtec TS, TD, BBS, BBD, BBL, BDL, BHS series connectors
- Part Numbers Covering various styles including SL-110-G-12, SL-120-G-10, SDL-115-G-19, SDL-125-1T-12
- Design: Low profile (down to 2.11mm), suitable for stacking spaces as compact as 3.89mm
- Dimensions: Contact length varies from 1.58mm to 4.82mm, insertion depth ranges up to 150%
- Additional styles include Micro-Socket variants with hollow-leg leads
Buy the Samtec SL Series U+2013 Reliable Socket Strips for Industrial Applications
Discover the versatile and reliable socket strips from Samtec designed for industrial applications. With their low-profile construction, high-temperature tolerance, and multiple lead styles, these connectors ensure secure, efficient connections in demanding environments. Perfect for high-density electronics, these socket strips feature gold and tin plating, RoHS compliance, and compatibility with various Samtec connector series. Purchase online today for fast delivery and ensure your projects benefit from durable, high-quality electrical connections with adjustable contact and insertion depths for your specific needs.
Get Samtec SL Series socket strips today—built for precision and long-lasting durability in high-density, high-temperature environments.
Frequently Asked Questions
Where can I buy SAMTEC SL110G12?
You can click on the BUY or RFQ button to purchase SL110G12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL110G12?
You can download the SL110G12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL110G12?
SAMTEC
