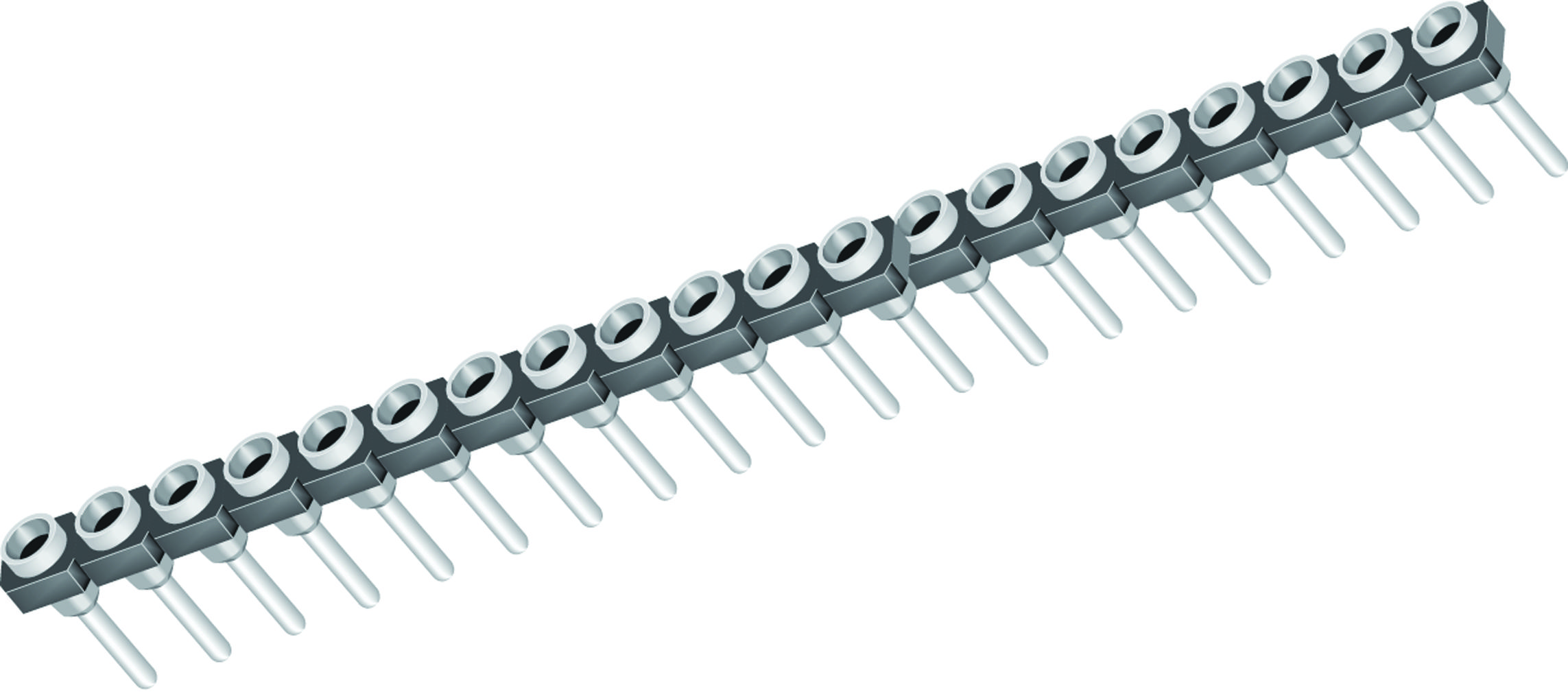

SAMTEC SL110T10 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips with a 2.54mm pitch, designed for through-hole mounting in industrial environments. Crafted from black glass-filled polyester insulator material, these socket strips include beryllium copper contacts housed in machined brass shells plated with 30µ-inch gold for excellent durability, low contact resistance of 10mΩ, and reliable performance over a temperature range of -55°C to 125°C. Compatible with multiple Samtec connector series, they offer four precision lead styles, low insertion force options, and a hollow-leg design for compact, versatile, and reliable connectivity in manufacturing and automation applications.
SAMTEC SL110T10 Socket Strip Specifications:
- Pitch: 2.54mm
- Contacts: 1 to 32 per row
- Contact Material: Beryllium Copper in Brass Shells
- Plating: 30µ-inch Gold over 50µ-inch Nickel
- Insulator Material: Black Glass Filled Polyester
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Force: Standard 90z (2.50 N), Low 25z (0.70 N)
- Withdrawal Force: 2.5z (0.70 N) standard, 2.0z (0.56 N) low
- Vertical Hollow Leg Design
- Compatibility: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
- Approvals: UL Listed (E111594)
- Lead Options: Four precision screw-machined styles
- RoHS Compliance: Yes
Buy the Buy Samtec SL Series Socket Strips Part Number SL110T10 Online
Discover the high-quality Samtec SL series socket strips designed for efficient, low-profile connections in manufacturing and automation. These sockets feature a 2.54mm pitch, gold plating for durability, and a hollow-leg design for space-saving installation. They are compatible with multiple Samtec connectors, offering four precision lead styles for versatile use. Made from black glass-filled polyester and beryllium copper contacts, they operate reliably from -55°C to 125°C, ensuring long-lasting performance in demanding industrial environments. Purchase now for reliable connectivity solutions.
Get Samtec SL Series socket strips today—engineered for low-profile, high-reliability performance with versatile lead options for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC SL110T10?
You can click on the BUY or RFQ button to purchase SL110T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL110T10?
You can download the SL110T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL110T10?
SAMTEC
