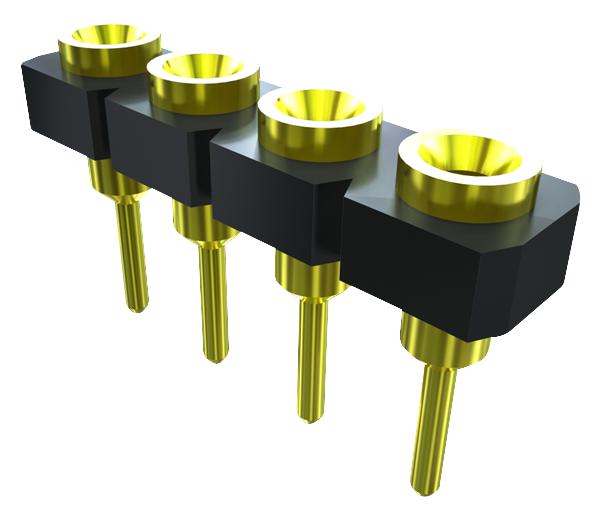

SAMTEC SL113G11 Screw Socket Strip
The SL series from Samtec features low-profile, single-row screw machine socket strips designed for through-hole mounting. These socket strips are compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS connector series. They have a 2.54mm pitch spacing, accommodating 1 to 32 contacts per row, with a vertical orientation. The sockets feature a standard mount lead style with a low profile profile. Made from black glass-filled polyester insulator material, they can operate within a temperature range of -55°C to 125°C, thanks to 30 microinch gold-plated contacts. The contact assembly utilizes beryllium copper (BeCu) contacts within a machined brass shell, offering a contact resistance of 10 milliohms. These socket strips comply with UL E111594 standards and are suitable for industrial applications.
SAMTEC SL113G11 Screw Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass
- Plating: Au or Sn over 50 microinch Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Force 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Force 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Lead Pitch: 2.54 mm (0.100")
- Number of Positions: 1 to 32
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Mounting Style: Through-hole, screw machine
- Approval: UL E111594
- Compatible Series: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
Buy the Samtec SL Series – Reliable Connector Sockets for Industrial Applications
Purchase the Samtec SL Series screw socket strips online to enjoy fast, reliable delivery. Designed for industrial-grade applications, these sockets offer excellent durability, precise pin alignment, and high-temperature operation, making them ideal for complex electronic assemblies. With advanced gold or tin plating, they ensure low contact resistance and corrosion resistance. Easy to mount with standard through-hole design, these connectors are perfect for reliable circuit connections. Shop now to improve your assembly efficiency and connection reliability with trusted Samtec quality.
Order your Samtec SL Series socket strips today and ensure your industrial projects benefit from dependable, low-profile connectivity with superior contact quality.
