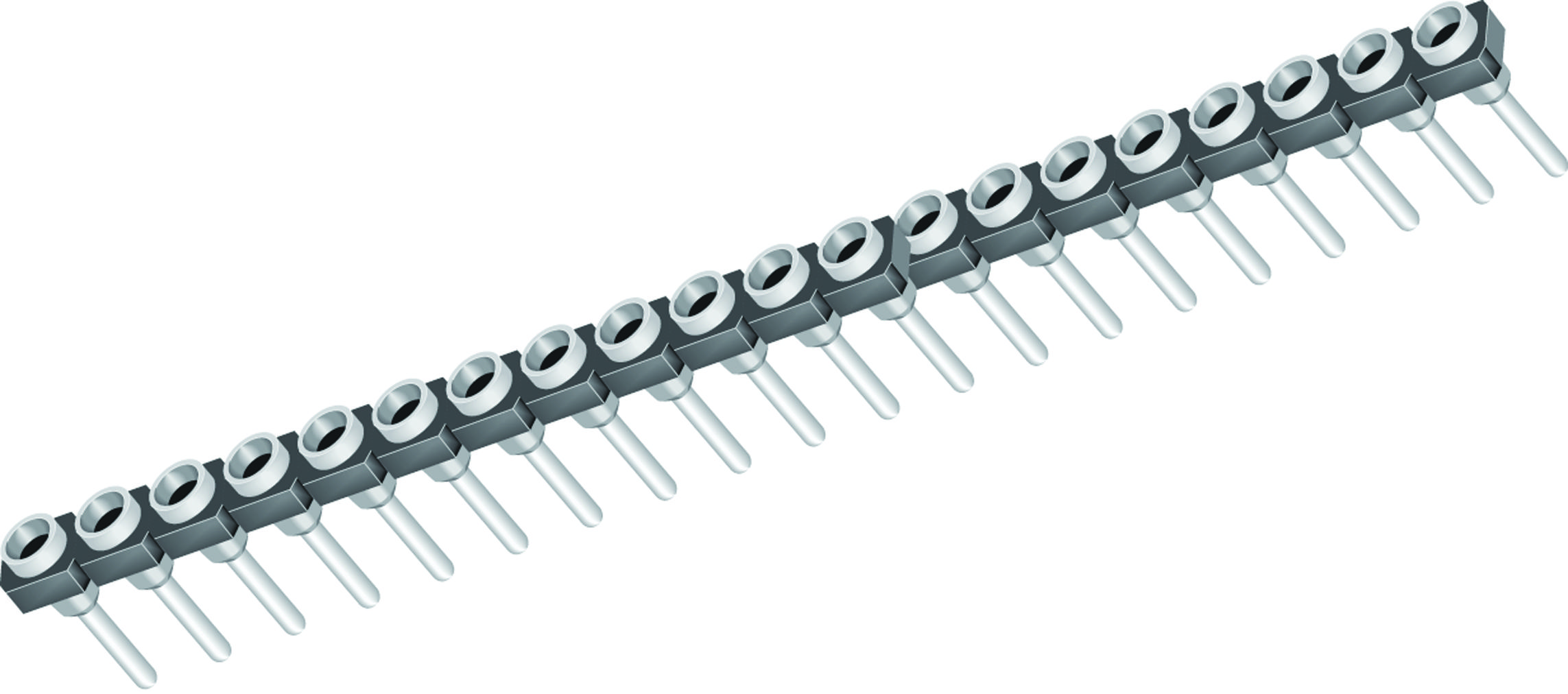

SAMTEC SL114T10 Socket Strip
The SL series from Samtec features low profile, single-row socket strips ideal for through-hole mounting in industrial environments. These connectors, compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series, utilize a 2.54mm pitch spacing with a hollow-leg design for compact assembly. Made from black glass-filled polyester insulator, they come with four precision screw-machined lead styles. Gold-plated contacts from beryllium copper housed in brass shells offer low contact resistance of 10 milliohms and withstand temperatures from -55°C to 125°C, meeting UL standards and RoHS compliance.
SAMTEC SL114T10 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50µ
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 16 oz (4.45 N) max, Low Force 5.5 oz (1.53 N) max
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg, Low Force 0.5 oz (0.14 N) min
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Pitch: 2.54 mm
- Maximum Insertion Depth: 4.82 mm
- Connector Series: SL, SDL
- Compatible Series: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
- Operating Temperature Range: -55°C to +125°C
- Certifications: UL E111594, RoHS
Buy the Samtec SL114T10 – Reliable Socket Strip for Industrial Applications
Purchase the Samtec SL series socket strip online today for secure, reliable connections in industrial applications. These low profile connectors feature a 2.54mm pitch, gold-plated contacts, and withstand temperatures from -55°C to 125°C. Suitable for a wide range of series including TS, TD, BBS, and more, they are ideal for PCB assembly and connector stacking. With options for low insertion force and high durability, these socket strips ensure optimal performance and easy installation. Order now to improve your industrial electronic systems efficiently.
Get Samtec SL series socket strips today—built for precision and long-lasting durability in industrial connecting solutions.
Frequently Asked Questions
Where can I buy SAMTEC SL114T10?
You can click on the BUY or RFQ button to purchase SL114T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL114T10?
You can download the SL114T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL114T10?
SAMTEC
