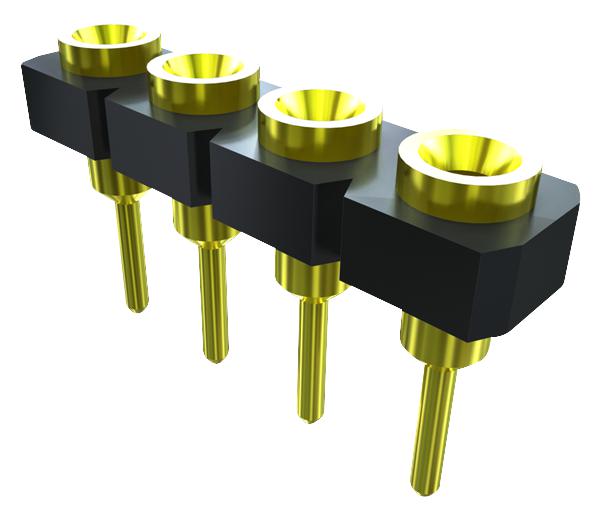

SAMTEC SL116G19 Micro-Socket Connectors
The SL series from Samtec offers low-profile, screw machine socket strips designed for through-hole mounting, compatible with various Samtec connector series. Featuring a 2.54mm pitch, vertical orientation, and a micro socket hollow leg design, these sockets provide low insertion force for easy installation. Contacts are gold-plated over a beryllium copper core in a machined brass shell, ensuring low contact resistance of 10 milliohms. Made of black glass-filled polyester insulators, they operate from -55°C to 125°C. Available in four lead styles, they meet UL and RoHS standards, ideal for industrial electronics and manufacturing.
SAMTEC SL116G19 Micro-Socket Connectors Specifications:
- Pitch: 2.54mm
- Contact Material: BeCu/Brass
- Plating: Au or Sn over 50μ
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Sn)
- Contact Resistance: 10mΩ
- Insertion Force: Standard - 90z (2.50N), Low Insertion - 25oz (0.70N)
- Withdrawal Force: Standard - 2.5oz (0.70N), Low Insertion - 2.0oz (0.56N)
- Insulator Material: Black Glass Filled Polyester
- Shell Material: Brass
- Lead Styles: Four precision screw machined lead styles available
- RoHS Compliance: Yes
- Operating Temperature: -55°C to +125°C
- Standards: UL E111594, RoHS compliant
- Compatibility: Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, BHS series
- Application: Industrial electronics, manufacturing parts, connector systems
- Design Features: Low profile, hollow leg, micro socket, low insertion force
Buy the Samtec Series SDL: Low Profile Micro-Socket Connectors: SDL-115-G-19
Order Samtec SDL-115-G-19 micro socket connectors online today for high-quality, reliable connections with low profile design. These connectors feature gold-plated contacts, a micro socket hollow leg design, and withstand temperatures from -55°C to 125°C. Perfect for industrial and electronic applications, they offer low insertion and withdrawal forces, making installation straightforward. Made with durable materials including black glass-filled polyester insulators and brass shells, they meet UL and RoHS standards. Enhance your manufacturing process by purchasing these precision connectors online now for secure, long-lasting performance.
Get Samtec SDL-115-G-19 today—built for reliable connections with low insertion force and high-temperature resilience.
Frequently Asked Questions
Where can I buy SAMTEC SL116G19?
You can click on the BUY or RFQ button to purchase SL116G19 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL116G19?
You can download the SL116G19 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL116G19?
SAMTEC
