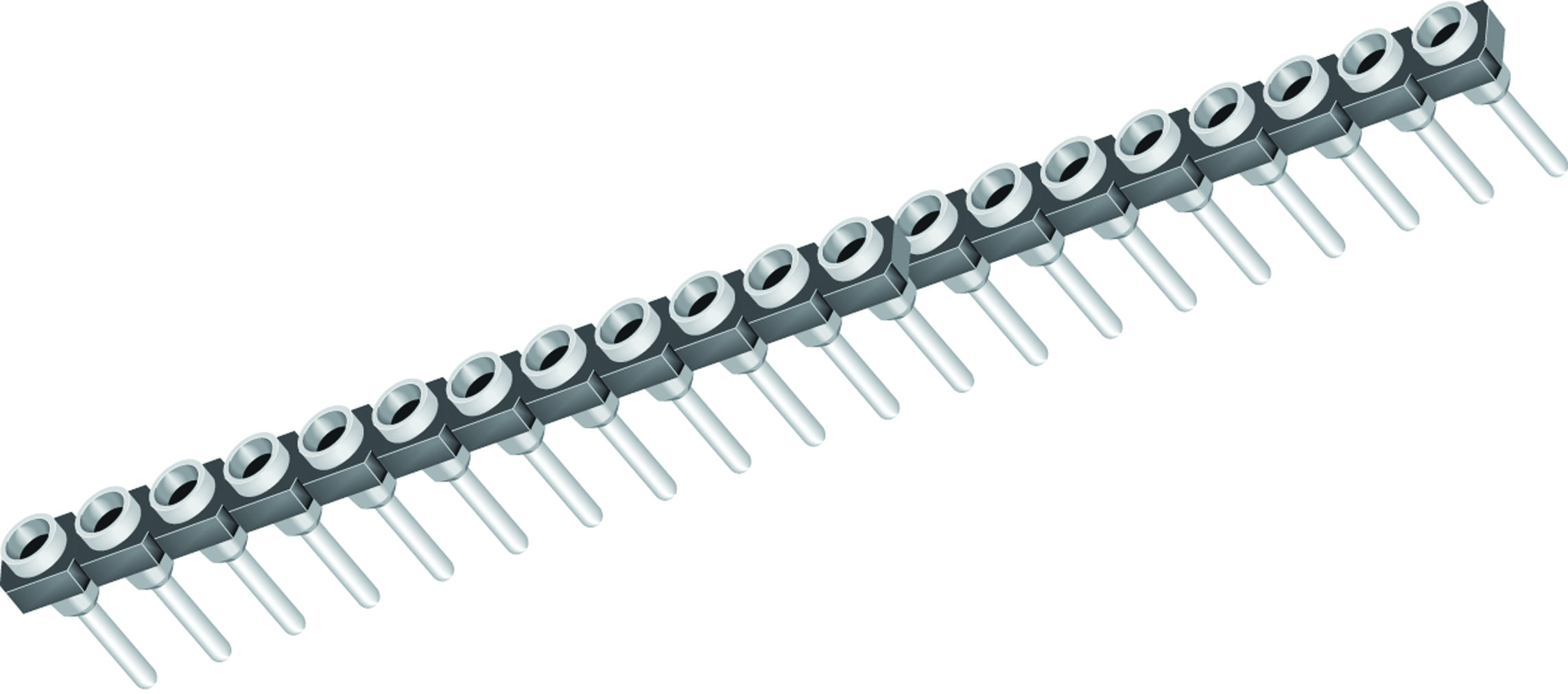

SAMTEC SL116T12 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips designed for through-hole mounting, compatible with various connector series. With a 2.54mm pitch, these micro hollow-leg sockets accommodate 1 to 32 contacts per row and are made from high-temperature resistant black glass-filled polyester. They feature beryllium copper contacts with machined brass shells, offering a contact resistance of 10 milliohms. Suitable for industrial use, they operate from -55°C to 125°C, and provide four precision lead styles for versatile applications, meeting UL safety standards and offering excellent electrical performance.
SAMTEC SL116T12 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50µ" Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Force 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Force 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Lead Pitch: 2.54 mm
- Number of Positions: Configurable from 1 to 32
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Suitable for through-hole mounting and industrial use, with four lead styles available for precise connections.
Buy the Buy Samtec SL Series Part Number SL116T12 Online
Purchase the Samtec Socket Strip Series SL116T12 online today and enjoy fast shipping and competitive pricing. Designed for industrial applications, this low-profile socket strip features a 2.54mm pitch, high-temperature resistant polyester insulators, and durable beryllium copper contacts with gold or tin plating. Its compact design with micro hollow-leg leads ensures space-saving connections, perfect for precise electronic assembly. Trust Samtec for quality, reliability, and professional support to meet all your connector needs. Get yours now and power your projects efficiently.
Order your Samtec Series SL116T12 socket strip today and enhance your electronic projects with reliable low-profile connections and versatile lead styles.
