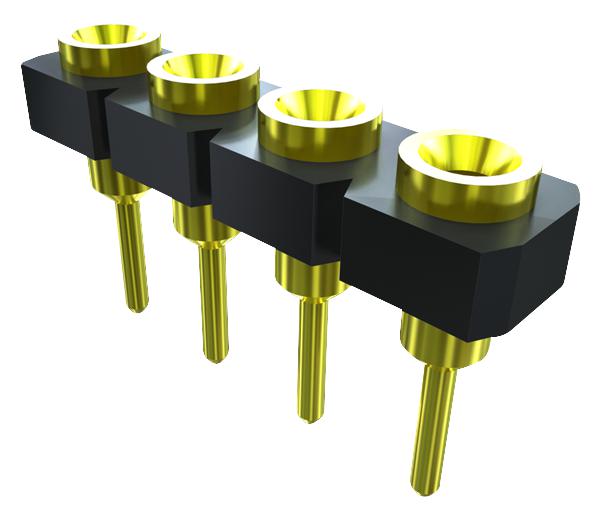

SAMTEC SL117G12 Socket Strip
The SL series socket strips from Samtec are low-profile, high-reliability, through-hole connectors designed for industrial and electronic applications. Featuring a compact height of just 2.11 mm and a pitch of 2.54 mm, they support high-temperature operation from -55°C to 125°C with 30 micro-inch gold-plated contacts for excellent electrical performance. Constructed with beryllium copper and brass shells, they offer low contact resistance of 10 milliohms, with multiple lead styles for versatile connections. Suitable for stacking, they are RoHS compliant and ideal for space-constrained, high-performance electronic assemblies.
SAMTEC SL117G12 Socket Strip Specifications:
- Pitch: 2.54mm (0.100 inch)
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass
- Plating: Au or Sn over 50 micro-inch Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90z (2.50N) avg., Max 16oz (4.45N); Low Force 25oz (0.70N) avg., Max 5.5oz (1.53N)
- Withdrawal Force: Standard 2.5oz (0.70N) avg., Min 1.5oz (0.42N); Low Force 2.0oz (0.56N) avg., Min 0.5oz (0.14N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Contact Style: Multiple screw-machined lead styles, hollow-leg micro socket options available
- Compatible with series: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
- Contact Diameter: 0.017" (0.43mm)
- Dimensions: Approximate height 2.11mm, varies with style and contact count
- Standards: UL E111594
Buy the Samlec SL Series Low Profile Socket Strips – Reliable Connectors for Industrial Applications
Purchase your Samtec SL series socket strip online today and ensure your electronic projects benefit from low-profile, high-performance connectors. Engineered for reliable through-hole connections, these socket strips feature a compact height of just 2.11 mm and a precise 2.54 mm pitch, supporting high-temperature operation up to 125°C. Made from durable materials with gold or tin plating, they provide excellent electrical conductivity and minimal contact resistance. Ideal for industrial automation, instrumentation, and high-density electronic assemblies, these sockets deliver dependable, space-efficient connectivity for demanding applications.
Order your Samlec Series SL12 socket strip today and enhance your space-saving electronic projects with high-quality connectors designed for durability.
Frequently Asked Questions
Where can I buy SAMTEC SL117G12?
You can click on the BUY or RFQ button to purchase SL117G12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL117G12?
You can download the SL117G12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL117G12?
SAMTEC
