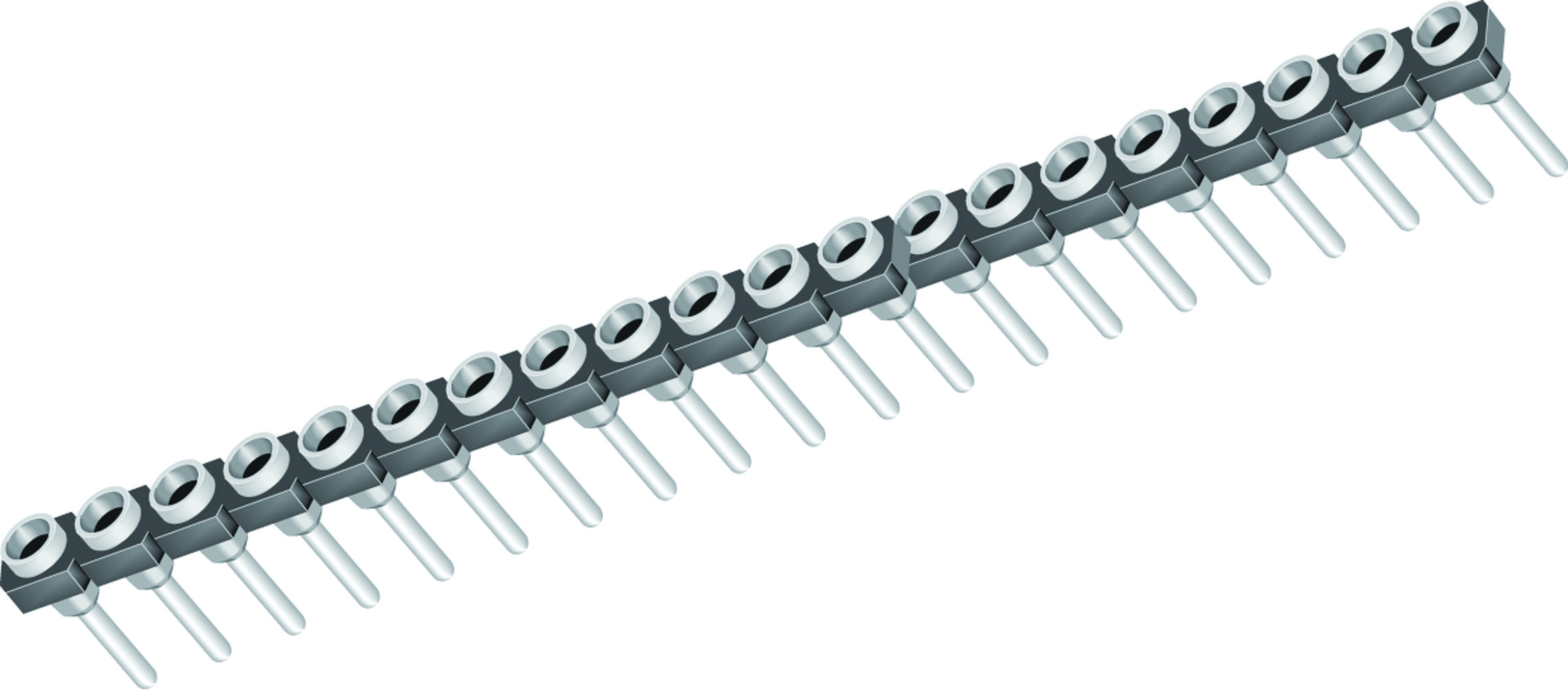

SAMTEC SL118T10 Socket Strip
The SL series from Samtec offers low-profile, single-row screw machine socket strips designed for through-hole mounting in electronic assemblies. These connectors feature a 2.54mm pitch with multiple contact configurations, from 1 to 32 contacts per row, and are compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series. Made from black glass-filled polyester insulators and beryllium copper contacts housed in brass shells, they deliver high temperature tolerance, low contact resistance, and reliable insertion force. Their slim, hollow-leg design enhances space efficiency, making them ideal for compact industrial and electronic applications.
SAMTEC SL118T10 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu (Beryllium Copper)
- Shell Material: Brass
- Plating: Au (Gold) over 50 y (1.27 μm) Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard approx. 90 oz (2.50 N), Low Force approx. 25 oz (0.70 N)
- Withdrawal Force: Approx. 2.5 oz (0.70 N), Low Force approx. 2.0 oz (0.56 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Pitch Spacing: 2.54 mm (0.100 inch)
- Number of Contacts: Ranges from 1 to 32 per row
- Lead Style: Hollow legs, low profile
- Temperature Rating: -55°C to +125°C
- Certifications: UL listed (E111594)
Buy the Buy Samtec SL Series Part Number SL118T10 Online
Purchase the Samtec SL series socket strips online today for reliable, space-saving connections in electronic and industrial applications. Featuring a low-profile design with hollow legs, these connectors are made from durable black glass-filled polyester and high-quality beryllium copper contacts. Their 2.54mm pitch ensures versatile compatibility, supporting up to 32 contacts per row. Gold-plated for enhanced performance, and RoHS compliant, these socket strips withstand a wide temperature range, offering low contact resistance, reliable insertion and withdrawal forces, and are ideal for compact, high-performance electronic systems.
Get Samtec SL118T10 today—built for space-efficient electronic connections with low-profile design and reliable gold-plated contacts.
Frequently Asked Questions
Where can I buy SAMTEC SL118T10?
You can click on the BUY or RFQ button to purchase SL118T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL118T10?
You can download the SL118T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL118T10?
SAMTEC
