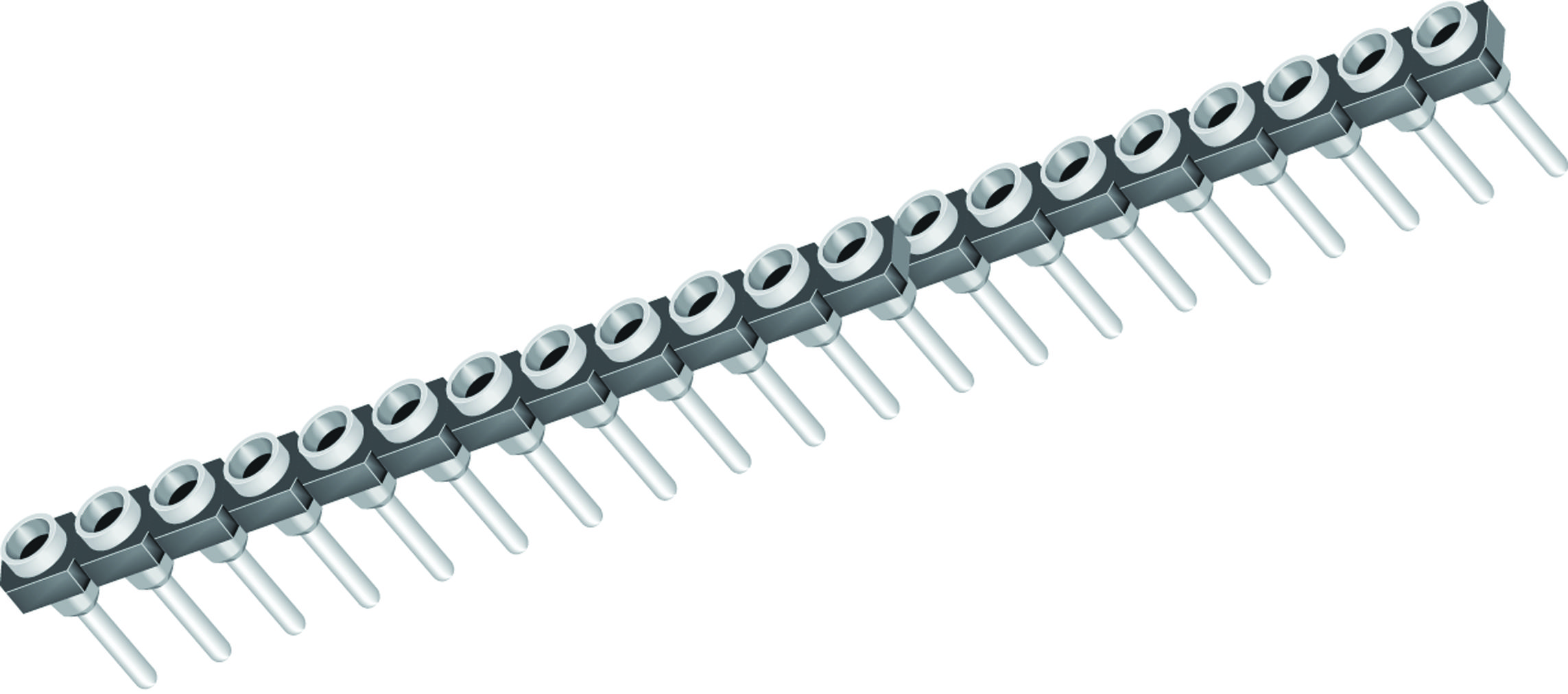

SAMTEC SL118T12 Socket Strip Connector
The SL series from Samtec are low-profile, single-row socket strips designed for through-hole mounting, compatible with various connector series including TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS. They feature 2.54mm pitch spacing, configurations from 1 to 32 contacts, and operate reliably within -55°C to 125°C. Made from black glass-filled polyester, with four precision screw-machined lead styles, the contacts are beryllium copper in machined brass shells, with 10 milliohm contact resistance. These industrial connectors meet UL standards and are ideal for reliable, space-saving applications.
SAMTEC SL118T12 Socket Strip Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass
- Plating: Au or Sn over 50 micro-inch Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard = 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Force = 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard = 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Force = 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Pitch: 2.54mm
- Configuration: 1 to 32 contacts per row
- Mounting Style: Through-hole, vertical orientation
- RoHS compliant: Yes
- Certification: UL Listed (UL E111594)
- Lead Type: Micro-socket with hollow leg, options for screw styles
- Compatibility: Works with series TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
Buy the Samtec SL Series – Reliable Connector for Industrial Applications
Order the Samtec SL series socket strips online now to experience space-saving, reliable connections suitable for demanding industrial environments. These connectors feature low insertion and withdrawal forces for easy assembly, high-temperature stability, and a rugged design from high-quality materials like black glass-filled polyester and beryllium copper contacts. Perfect for PCB stacking, board-to-board connections, and high-density electronic layouts, ensuring optimal performance. Purchase online today and enhance your industrial electronics with trusted, durable connector solutions designed for long-term reliability and safety compliance.
Get Samtec SL Series socket strips today—built for precision and long-lasting durability in industrial electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SL118T12?
You can click on the BUY or RFQ button to purchase SL118T12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL118T12?
You can download the SL118T12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL118T12?
SAMTEC
