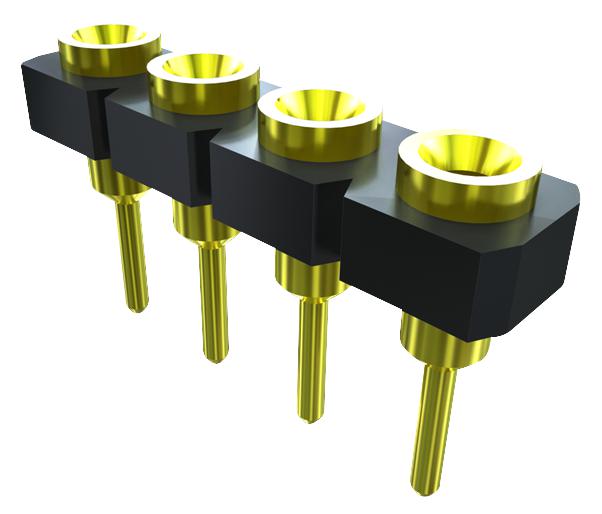

SAMTEC SL120TT11 Socket Strip
The SL series from Samtec features ultra-low profile, single-row screw machined socket strips designed for through-hole mounting, offering a compact solution for space-constrained applications. With a 2.54mm pitch and compatibility with multiple Samtec connector series, these connectors ensure reliable electrical connections. Made from black glass-filled polyester, they withstand temperatures from -55°C to 105°C with tin-plated contacts, providing durability and conductivity. The series includes four precise lead styles with beryllium copper contacts in machined brass shells. Suitable for industrial and electronic device applications, these sockets support high-performance, quick assembly, and RoHS compliance.
SAMTEC SL120TT11 Socket Strip Specifications:
- Pitch: 2.54 mm
- Contact Material: Beryllium Copper
- Shell Material: Brass
- Insulator Material: Black Glass Filled Polyester
- Plating: Gold or Tin over 50µ
- Operating Temperature Range: -55°C to +105°C
- Contact Resistance: Approximately 10 milliohms
- Insertion Force: Standard: 90 oz (2.50 N) max, Low Force: 25 oz (0.70 N) max
- Withdrawal Force: Standard: 2.5 oz (0.70 N) avg, Low Force: 2.0 oz (0.56 N) avg
- RoHS Compliant: Yes
- Application: Industrial, electronics, PCB mounting
- Compatibility: Supports Samtec TS, TD, HTS, BBS, BBD, BBL, BDL, BHS series
- Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Lead Styles: Four options for precise lead configurations
- Max Lead Diameter: 0.53 mm
- Dimensions: Profile down to 2.11 mm (.083"), with mounting options for 3.89 mm (.153") stack spacing
- Standards: UL Listed, RoHS compliant
Buy the Samtec Series SL Socket Strips: SL120TT11
Purchase your Samtec Series SL socket strips online today to enhance your electronic assembly with compact, durable, and high-quality connectors. Designed for through-hole mounting with a 2.54mm pitch, these socket strips are ideal for industrial and electronics applications. Made from resilient materials like black glass-filled polyester with gold or tin plating, their high-performance design ensures reliable electrical connections over a wide temperature range. Choose from four precision screw machined lead styles to optimize your assembly process, all while benefiting from RoHS compliance and quick online ordering.
Order your Samtec Series SL socket strips today and experience reliable, space-saving connections for your high-performance electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SL120TT11?
You can click on the BUY or RFQ button to purchase SL120TT11 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL120TT11?
You can download the SL120TT11 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL120TT11?
SAMTEC
