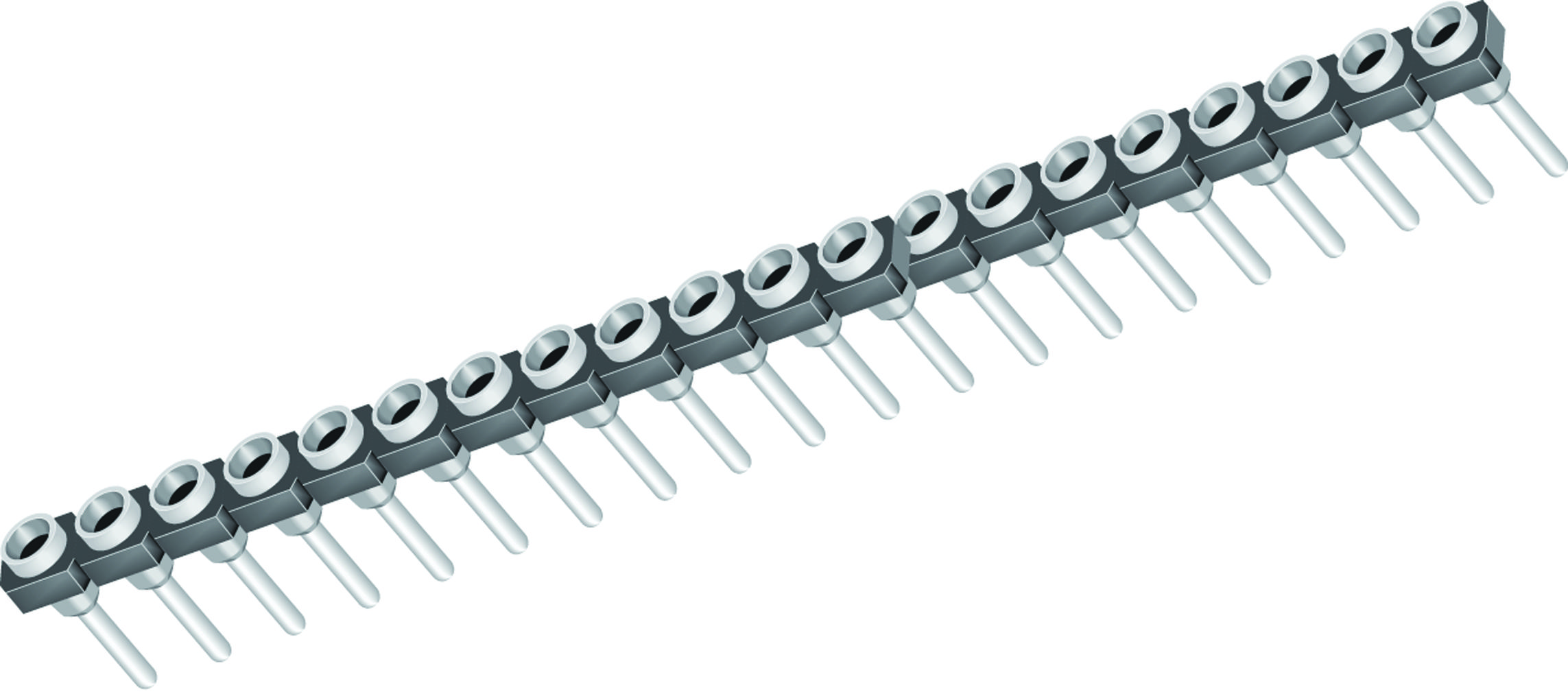

SAMTEC SL122T10 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips designed for reliable connections in dense electronic assemblies. They connect seamlessly with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series. With a 2.54mm pitch and options for 1 to 32 contacts per row, these vertically oriented, hollow-leg sockets accommodate high-temperature environments from -55°C to 125°C. Made from black glass-filled polyester, the contacts are gold-plated for durability, with contact resistance of 10 milliohms. They meet UL standards and utilize precision screw-machined lead styles for versatile applications.
SAMTEC SL122T10 Socket Strip Specifications:
- Insulator Material: Black glass-filled polyester
- Contact Material: BeCu / Brass
- Plating: Au or Sn over 50µ
- Voltage Rating: Unknown
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms at 10 mA
- Insertion Force: Standard = 90 oz (2.50 N) avg., 160 oz (4.45 N) max; Low Force = 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard = 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Force = 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Contact Diameter: 0.43 mm
- Contact Length: 18 mm or 10 mm depending on style
- Insertion Depth: Up to 4.82 mm depending on style
- Shell Material: Brass with BeCu contacts
- Plating options: Gold or Tin over Nickel
Buy the Buy Samtec Socket Part Number SL122T10 Online
Order the Samtec socket strip online today to benefit from high-quality, high-temperature rated connectors with gold or tin plating, precise screw-machined leads, and multiple styles. Designed for dense electronic assemblies, these low-profile sockets support up to 32 contacts per row with 2.54mm pitch spacing. Made from durable, black glass-filled polyester with BeCu contacts housed in brass shells, they ensure excellent electrical performance with low contact resistance. Perfect for industrial and commercial applications, they are RoHS compliant and suitable for wave soldering, delivering dependable and secure connections in compact spaces.
Buy Samtec SL122T10 now and experience reliable, low-profile connections with versatile lead styles for high-temperature environments.
Frequently Asked Questions
Where can I buy SAMTEC SL122T10?
You can click on the BUY or RFQ button to purchase SL122T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL122T10?
You can download the SL122T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL122T10?
SAMTEC
