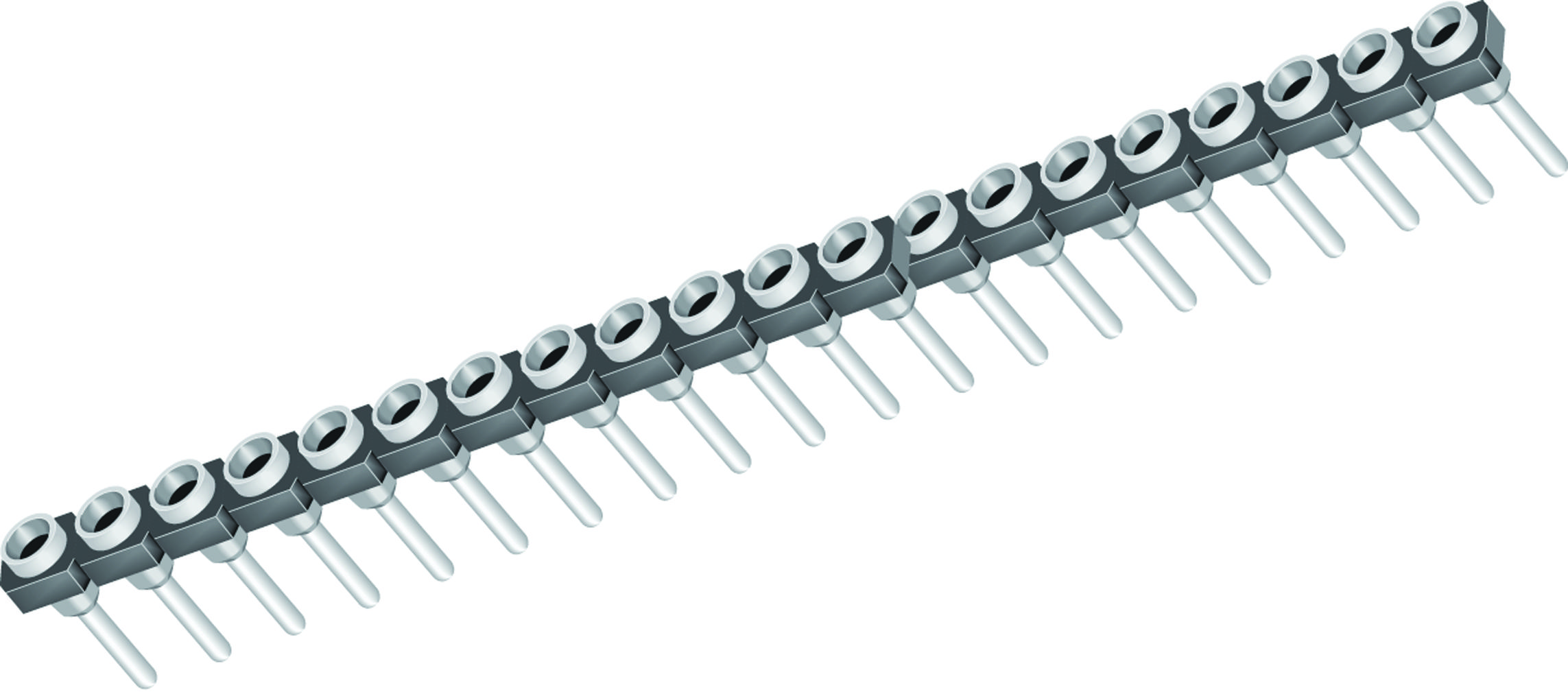

SAMTEC SL122T12 Socket Connector
The SL series from Samtec features low-profile, single-row socket strips designed for through-hole mounting in industrial settings. These connectors support a pitch of 2.54mm, accommodating 1 to 32 contacts per row with various lead styles, including micro socket and hollow-leg options. Made with black glass-filled polyester insulators and beryllium copper contacts plated with gold or tin over nickel, they operate up to 125°C, have a contact resistance of 10 milliohms, and meet UL standards. Ideal for reliable, high-temperature, space-saving connections in industrial equipment and automation systems.
SAMTEC SL122T12 Socket Connector Specifications:
- Pitch: 2.54 mm
- Contacts: 1 to 32 per row
- Lead Styles: four precision screw-machined options including micro socket and hollow-leg
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu/Brass, plated with Au or Sn over 50μ
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: 9 oz (2.50 N) avg., 16 oz (4.45 N) max (standard); 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max (low force)
- Withdrawal Force: 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min (standard); 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min (low force)
- Temperature Range: -55°C to +125°C (Gold plated), -55°C to +105°C (Tin plated)
- RoHS Compliant: Yes
- Certifications: UL listed (E111594)
Buy the Samtec SL122T12 – Reliable Socket Connectors for Industrial Applications
Purchase the Samtec Socket Connector from our online store today to experience exceptional reliability, space efficiency, and high-temperature performance. These low-profile, UL-listed connectors support up to 32 contacts with various lead styles, making them ideal for industrial automation and equipment. With gold or tin plating and a robust insulator, they ensure long-lasting connections in demanding conditions. Get this high-quality connector now and optimize your projects for space, durability, and efficiency with a trusted brand’s product available for quick, easy online ordering.
Buy Samtec SL122T12 now and ensure reliable, space-saving connections with high-temperature, low-profile socket strips suited for industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SL122T12?
You can click on the BUY or RFQ button to purchase SL122T12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL122T12?
You can download the SL122T12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL122T12?
SAMTEC
