SAMTEC SL124T10 Socket Strip
The SL series from Samtec are low-profile, single-row socket strips designed for through-hole mounting, compatible with various Samtec connector series. Featuring a 2.54mm pitch spacing and accommodating 1 to 32 contacts per row, these connectors have a vertical orientation with hollow leg, low-profile lead style. They are constructed from black glass-filled polyester insulator, with contacts made of beryllium copper housed in a machined brass shell. Gold or tin plating provides corrosion resistance, with a contact resistance of 10 milliohms. Operating temperature ranges from -55°C to 125°C, meeting UL standards, making them ideal for industrial applications requiring reliable, high-temperature performance.
SAMTEC SL124T10 Socket Strip Specifications:
- Pitch: 2.54mm
- Contact Material: BeCu/Brass
- Insulator Material: Black Glass Filled Polyester
- Plating: Au or Sn over 50y Ni (1.27 μm)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard = 90 oz (2.50 N) avg., 16 oz (4.45 N) max; Low Insertion Force = 25 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: Standard = 2.5 oz (0.70 N) avg., 1.5 oz (0.42 N) min; Low Insertion Force = 2.0 oz (0.56 N) avg., 0.5 oz (0.14 N) min
- Maximum contacts per row: 32
- Lead Style: Hollow Leg, Low Profile
- Compliance: RoHS

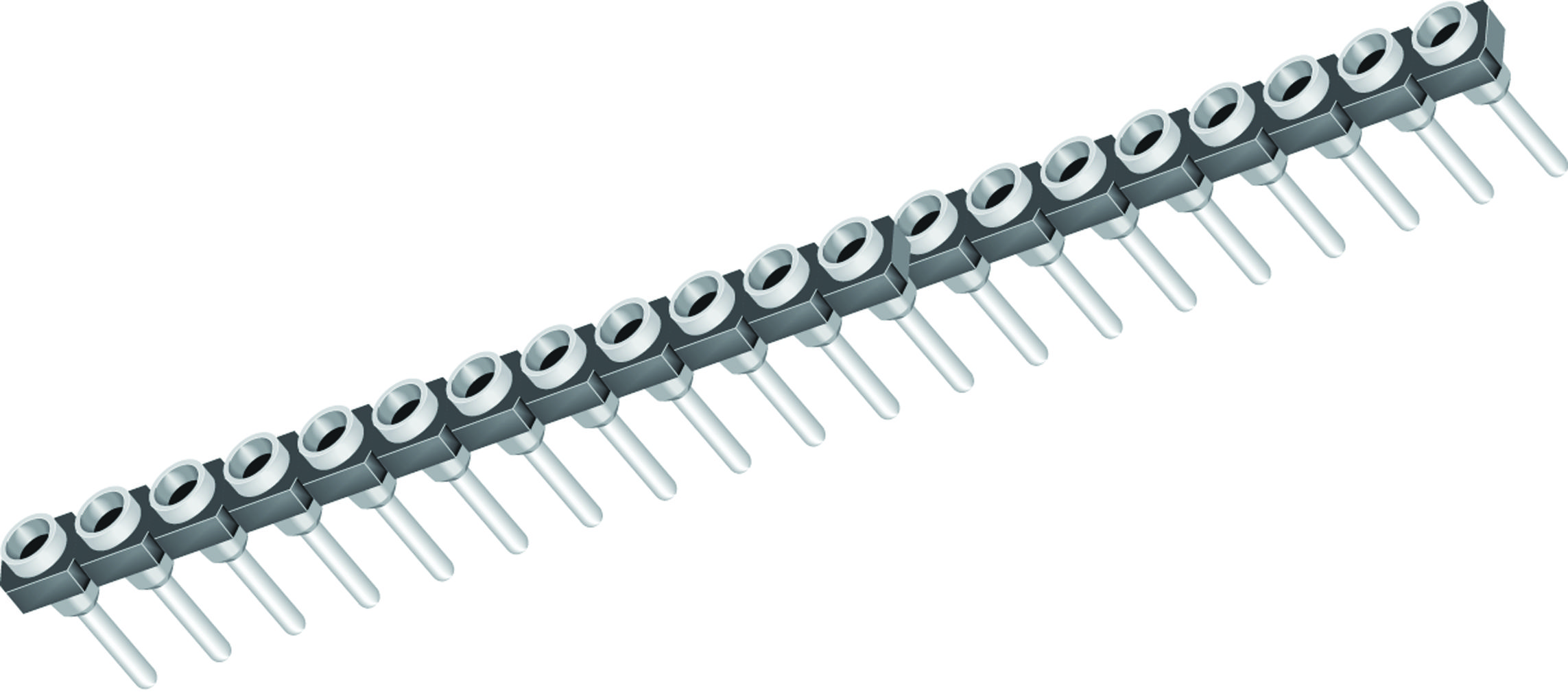

Buy the Samtec Series SL Socket Strips: SL124T10
Enhance your industrial electronic assembly with the Samtec SL124T10 socket strip. Featuring a low-profile, 2.54mm pitch, gold-plated contacts, and high-temperature tolerance, this component ensures reliable connections for demanding environments. Its compact design with hollow legs facilitates efficient board stacking and through-hole mounting. Made from durable black glass-filled polyester and high-quality beryllium copper contacts, it combines robustness with excellent electrical performance. Perfect for applications requiring precision, versatility, and compliance with RoHS standards, making your projects more dependable and easier to assemble.
Buy Samtec SL124T10 low-profile socket strips now and experience unmatched reliability and performance in industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC SL124T10?
You can click on the BUY or RFQ button to purchase SL124T10 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL124T10?
You can download the SL124T10 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL124T10?
SAMTEC
