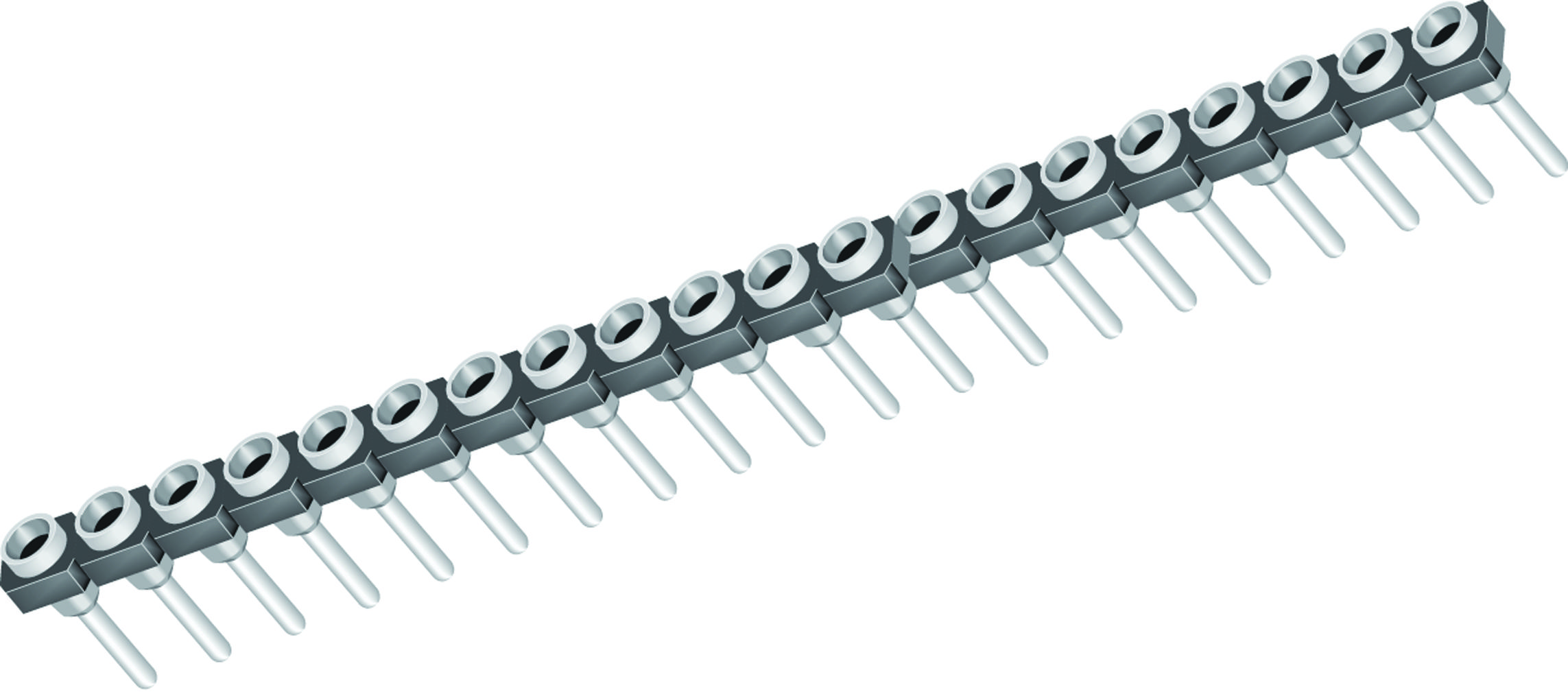

SAMTEC SL126T10 Socket Strip
The SL series from Samtec consists of low-profile, single-row screw machine socket strips designed for through-hole mounting. These socket strips are compatible with Samtec's TS, TD, HTS, BBS, BBD, BBL, BDL, and BHS series connectors. They feature a pitch spacing of 2.54mm, with options for 1 to 32 contacts per row, and are vertically oriented. The low-profile design includes hollow-leg leads and is made from black glass-filled polyester insulation material. Manufactured with high-quality beryllium copper contacts housed in machined brass shells, these connectors support high operating temperatures ranging from -55°C to 125°C, with 30µm gold-plated contacts ensuring a contact resistance of 10 milliohms. They comply with UL E111594 standards and are available in four precision screw-machined lead styles. Ideal for industrial applications requiring reliable, high-temperature connections.
SAMTEC SL126T10 Socket Strip Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact/Shell Materials: BeCu/Brass
- Plating: Au or Sn over 50µm Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 90 oz (2.50 N), Low 25 oz (0.70 N)
- Withdrawal Force: Standard 2.5 oz (0.70 N), Low 2.0 oz (0.56 N)
- Lead Spacing: 2.54 mm
- Contact Sizes: 0.38 mm to 0.51 mm diameter
- Contact Lengths: 1.65 mm to 4.82 mm depending on style
- RoHS Compliant: Yes
- Pin Count: 1 to 32 contacts per row
- Mounting Style: Through-hole, vertical orientation
- Connector Series Compatibility: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
Buy the Buy Samtec SL Series Socket Strips Part Number SL126T10 Online
Order the Samtec SL series socket strips online today and enjoy reliable, high-temperature connections for industrial applications. These low-profile, single-row connectors feature durable materials, wide temperature ranges, and four precision lead styles for various mounting needs. Made from black glass-filled polyester with gold or tin-plated contacts in machined brass shells, they ensure low contact resistance and high durability. Compatible with multiple Samtec series connectors, these socket strips are RoHS compliant and ideal for precise, long-lasting electronic connections demanding high reliability and withstand high operating temperatures.
Get Samtec SL126T10 low-profile socket strips today—designed for high-temperature, reliable industrial connections with four precise lead styles.
