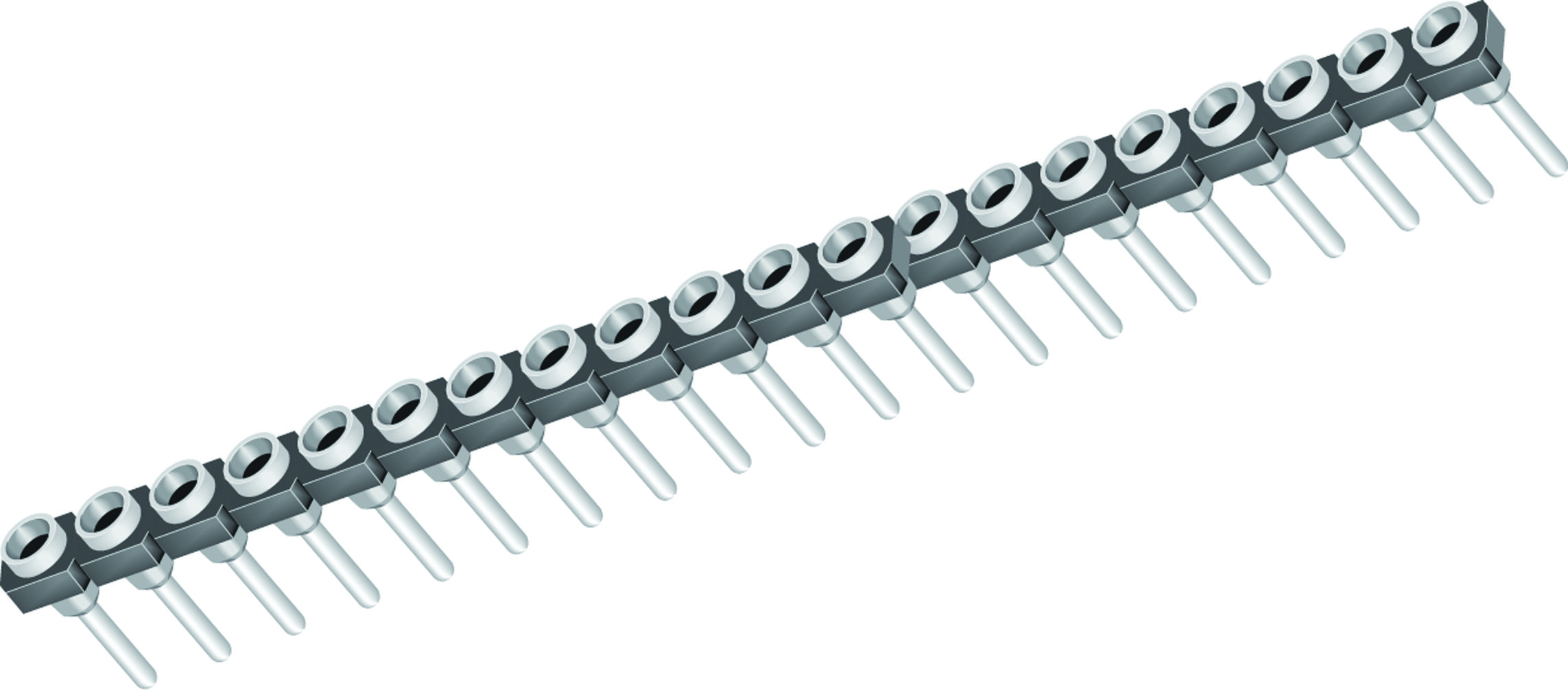

SAMTEC SL126T12 Socket Connector
The SL series are low-profile, single-row screw machine socket strips designed for through-hole mounting. They feature a 2.54mm pitch spacing, vertical orientation, and are suitable for reliable, high-temperature connections in industrial applications. Made from black glass-filled polyester insulator material with beryllium copper contacts in brass shells, these connectors operate from -55°C to 125°C with gold plating for corrosion resistance. They have a contact resistance of 10 milliohms, an insertion force of 9 oz on average, and are UL certified, making them ideal for various electronic and industrial use cases.
SAMTEC SL126T12 Socket Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: BeCu Brass
- Plating: Au over 50µ" Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Sn
- Contact Resistance: 10 milliohms
- Insertion Force: 9 oz (avg.), 16 oz (max)
- Withdrawal Force: 2.5 oz (avg.), 1.5 oz (min)
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave only
- Pitch Spacing: 2.54 mm
- Contact Style: Micro-Socket Hollow Leg
- Part Number Example: SL126T12
Buy the Buy Samtec SL Series Part Number SL126T12 Online
Enhance your electronic or industrial assembly with the Samtec SL series socket connector strip. Featuring a compact 2.54mm pitch, gold-plated contacts, and high temperature resistance, these connectors ensure reliable performance in demanding environments. Made from durable black glass-filled polyester with precision-machined beryllium copper contacts, they facilitate secure connections for through-hole mounting applications. UL certified and RoHS compliant, these parts are ideal for engineers seeking durable, high-quality interconnect solutions for various industrial, automation, or control systems. Order online today for fast delivery.
Order your Samtec Series SL126T12 high-reliability socket strip today and ensure your projects benefit from dependable, high-temperature connections.
Frequently Asked Questions
Where can I buy SAMTEC SL126T12?
You can click on the BUY or RFQ button to purchase SL126T12 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SL126T12?
You can download the SL126T12 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SL126T12?
SAMTEC
