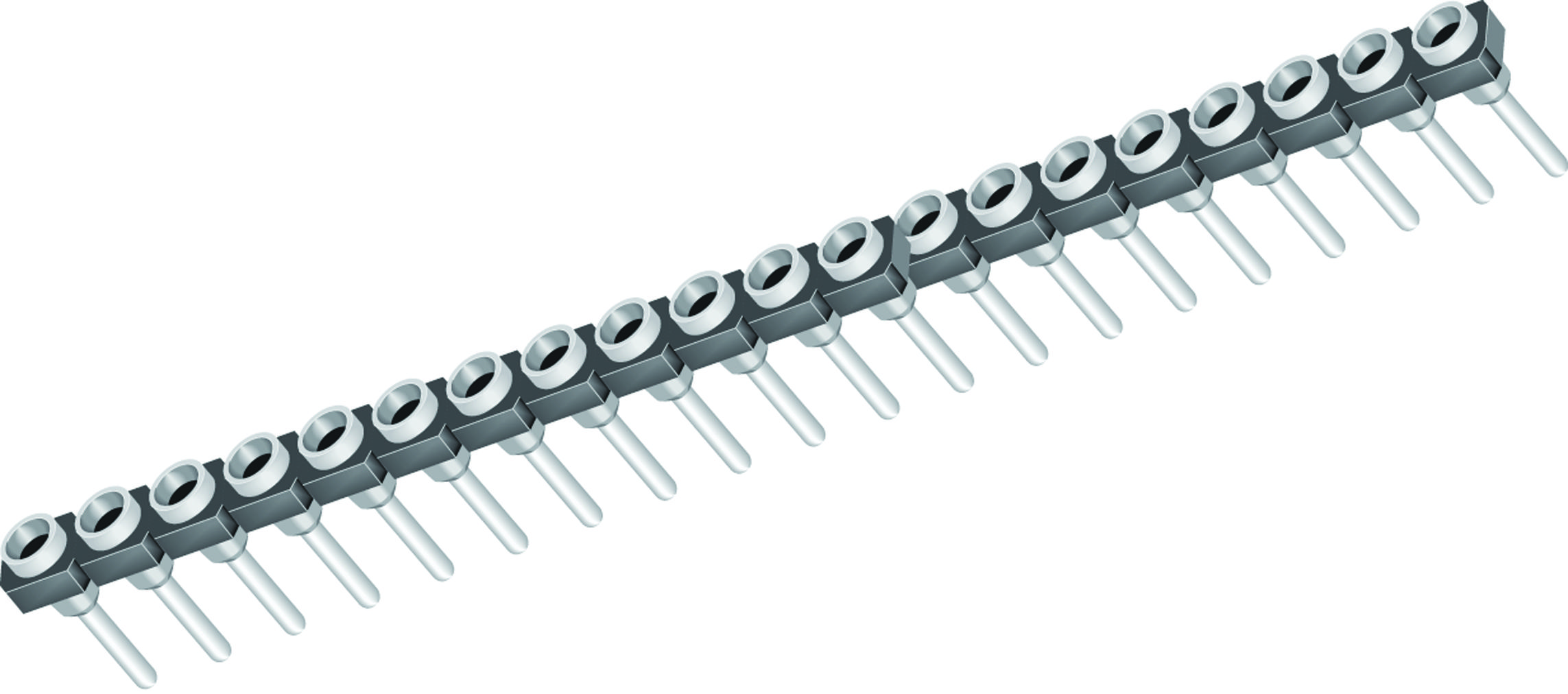

SAMTEC SL130T12 Socket Strip
The SL series from Samtec features low-profile, through-hole socket strips with a 2.54mm pitch, supporting 1 to 32 contacts per row. Made from black glass-filled polyester and housing beryllium copper contacts plated with 30 microinches of gold, these sockets are designed for durability and reliability in industrial environments. They operate at temperatures from -55°C to 125°C, offering low contact resistance of 10 milliohms and standard insertion and withdrawal forces. Compatible with various Samtec connectors, these compact, precision-engineered sockets are ideal for space-constrained electronic assemblies and advanced manufacturing applications. UL and RoHS compliant.
SAMTEC SL130T12 Socket Strip Specifications:
- Pitch: 2.54mm (0.100 inch)
- Contact Material: BeCu (Beryllium Copper)
- Shell Material: Brass with gold or tin plating
- Insulator Material: Black glass-filled polyester
- Operating Temperature Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Contact Resistance: 10 milliohms
- Insertion Force (standard): 90 oz (2.50 N) on average, max 16 oz (4.45 N)
- Withdrawal Force: 2.5 oz (0.70 N) on average, min 1.5 oz (0.42 N)
- RoHS Compliant: Yes
- Compatible with: TS, TD, HTS, BBS, BBD, BBL, BDL, BHS series
- Number of Positions: 1 to 32 per row
- Mounting Style: Through-hole, low-profile
- Temperature Range: -55°C to +125°C
- Standards: UL Listed, RoHS compliant
- Tolerance: Precision screw machined leads with four available styles
- Operating Force: Standard 90 oz (2.50 N), low-force options available
Buy the Samtec Series SL Socket Strips: SL130T12
Enhance your electronic assemblies with the Samtec Series SL socket strips, featuring low-profile design, gold-plated contacts, and versatile lead styles. Engineered for durability and reliable performance within a -55°C to 125°C temperature range, these sockets support 1 to 32 contacts per row, making them ideal for space-constrained applications. Constructed from durable materials including beryllium copper contacts and black glass-filled polyester insulators, they abide by UL and RoHS standards. Order online now for fast delivery of this precision, high-quality connector solution suited for industrial, manufacturing, and electronic development projects.
Order your Samtec Series SL socket strips today and give your projects the dependable quality they deserve with reliable, low-profile connectivity solutions.
