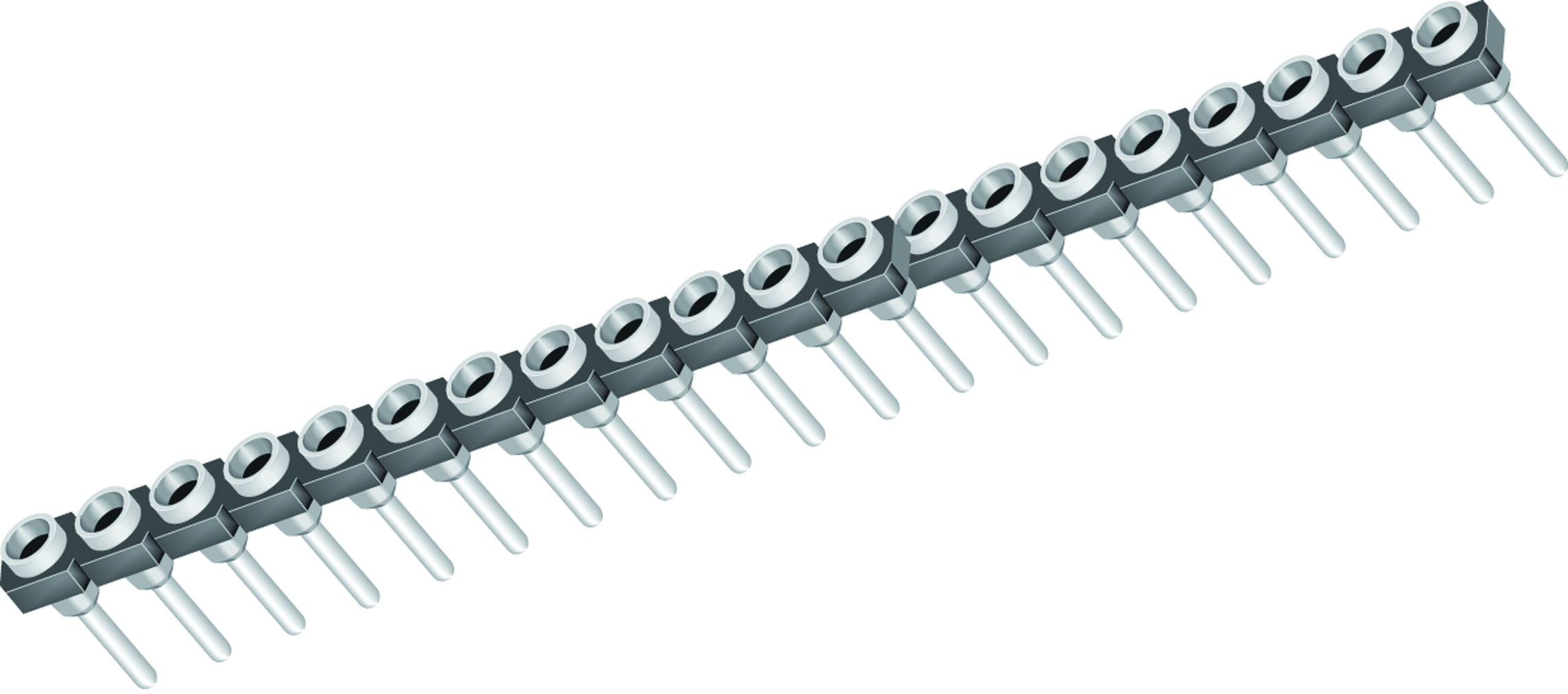

SAMTEC SL132T12 Socket Strip
The SL series from Samtec features low-profile, single-row socket strips ideal for through-hole mounting applications. Designed for versatility, they support a 2.54mm pitch and are compatible with multiple Samtec connector series such as TS, TD, and BBL. Equipped with four precision screw-machined lead styles, these connectors offer excellent electrical performance, with 10 milliohm contact resistance, and operate reliably from -55°C to 125°C. Made from durable black glass-filled polyester, they feature gold-plated contacts with 30 micrometers of gold thickness, ensuring long-lasting performance in industrial environments.
SAMTEC SL132T12 Socket Strip Specifications:
- Pitch: 2.54mm
- Contact Material: BeCu/Brass
- Insulator Material: Black Glass Filled Polyester
- Plating: Au or Sn over 50µ” Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 milliohms
- Insertion Force: Standard 16 oz (4.45 N) max, Low Force 5.5 oz (0.15 N) max
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg, Low Force 0.5 oz (0.14 N) min
- Lead Styles: Four available screw-machined styles
- Compatibility: Mates with Series TS, TD, HTS, BBS, BBD, BBL, BDL, BHS
- RoHS Compliant: Yes
Buy the Samtec Series SL Socket Strips: SL132T12
Order the Samtec Socket Strip from the SL series online today and enjoy reliable, high-quality connections for your industrial and electronic projects. Designed with durability and precision in mind, these socket strips feature gold-plated contacts and four high-precision lead styles optimized for versatile assembly. With a compact low-profile design measuring just 2.11mm off the board, they fit easily into tight spaces while providing excellent electrical performance. Perfect for various mounting applications, these socket strips ensure long-term durability and superior connection reliability in demanding environments.
Get Samtec SL132T12 today—built for precision and long-lasting durability.
