SAMTEC SLM10301SD Micro Socket
The through-hole micro sockets are precision-engineered connectors designed for reliable electronic connections in compact spaces. Made with high-quality materials such as black glass-filled polyester insulators and phosphor bronze contacts, these sockets feature gold or tin plating for improved conductivity and corrosion resistance. Rated for currents up to 5A per pin and operating temperatures from -55°C to +125°C, they support easy insertion with force of approximately 8 oz. and withdrawal with 6 oz. suitable for various electronic applications requiring durability and precision. RoHS compliant and adaptable to different pin counts and board thicknesses, ensuring versatile use in advanced electronic assemblies.
SAMTEC SLM10301SD Micro Socket Specifications:
- Insulator Material: Black Glass-Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Matte Tin or Gold on contact, Ni underlayer
- Current Rating: 5.0 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm to 3.05 mm for SLM, 3.43 mm to 6.35 mm for SMS
- Insertion Force: 8 oz (2.22 N) avg for single contact
- Withdrawal Force: 6 oz (1.67 N) avg for single contact
- RoHS Compliant: Yes
- Pin Count: Options vary, see datasheet for specifics
- Lead Style: 100% lead-free options available
- Operating Voltage: Not specified
- Dimensions vary based on configuration and pin count
- Certifications: RoHS Compliant
- Additional options include different plating and style variations
- Designs may include non-standard lengths and styles; subject to change

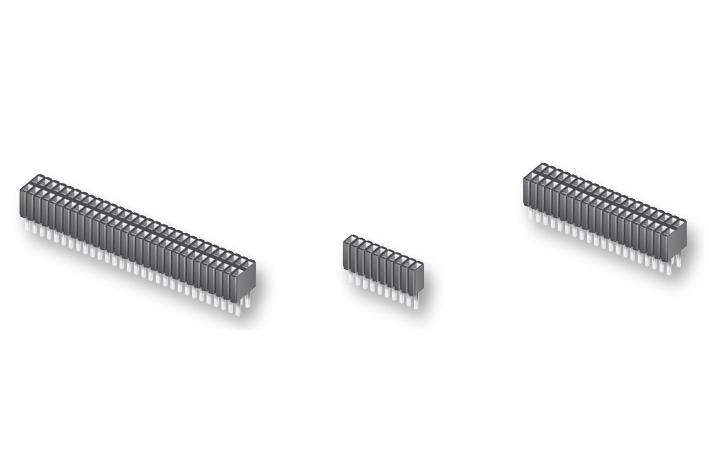

Buy the Samtec Series SLM Micro Sockets: SLM10301SD
Purchase Samtec Micro Sockets easily online and ensure secure, reliable connections for your electronic projects. Designed for durability, these high-quality sockets feature gold or tin plating, supporting currents up to 5A per pin with impressive temperature range and insertion/extraction forces. Suitable for compact applications, they are RoHS compliant and offer versatile pin configurations for various PCB thicknesses. Shop now to upgrade your electronic assembly with connectors that deliver stability, durability, and precision in demanding environments.
Buy Samtec SLM Micro Sockets now and experience unmatched reliability and performance for high-precision electronic connections.
