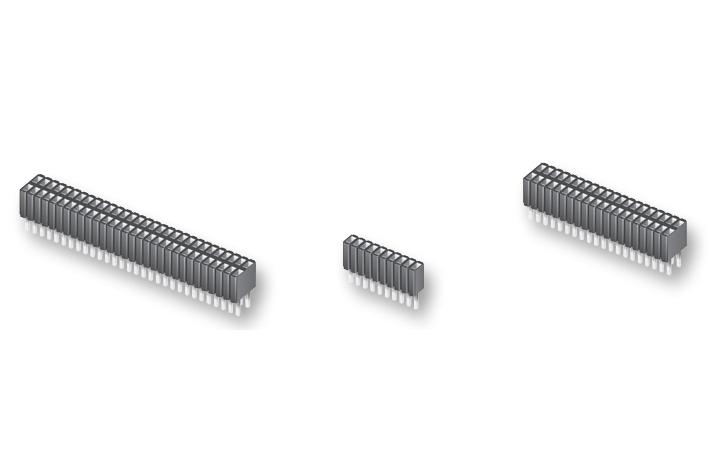

SAMTEC SLM10701SD High-Density Electrical Connector
The SLM10701SD is a high-quality, lead-free, and RoHS compliant electrical connector designed for reliable performance in demanding conditions. Featuring black glass filled polyester insulators, phosphor bronze contacts with gold or tin plating over nickel, this connector operates within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin. It supports current ratings of 5.2A per pin and 5.0A per pin, ensuring optimal power delivery. Its versatile design includes various insertion depths, withdrawal forces, and plating options, making it suitable for high-density electronic applications requiring durability, precise contact resistance of 10 mΩ, and easy installation.
SAMTEC SLM10701SD High-Density Electrical Connector Specifications:
- Insulator Material: Black Glass Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating Options: Au or Sn over 50u'' (1.27 μm) Ni
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm (.080") to 3.05 mm (.120") (SLM), 3.43 mm (.135") to 6.35 mm (.250") (SMS)
- Insertion Force: 8.02 N (0.8 kgf) avg. (single contact)
- Withdrawal Force: 6.02 N (0.6 kgf) avg. (single contact)
- RoHS Compliant: Yes
- Processing: Lead-Free, Wave Solderable (SLM), Yes (SMS)
- Dimensions and optional plating: Matte Tin, other options available
- Certifications and standards compliance available on Samtec website
Buy the Samtec Series SLM: SLM10701SD High-Density Electrical Connector
Order the Samtec SLM10701SD connector online today and enjoy fast delivery and competitive pricing. Designed for high reliability and superior performance in demanding electronic systems, this connector features gold or tin plating, robust insulator materials, and a compact design suitable for high-density applications. Its compatibility with wave soldering makes it ideal for manufacturing environments. Secure your supply chain by purchasing online now and benefit from easy ordering, comprehensive support, and trusted quality that ensures your projects meet the highest standards of performance.
Buy Samtec SLM10701SD high-performance connector now and experience unmatched reliability, durability, and easy installation for demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SLM10701SD?
You can click on the BUY or RFQ button to purchase SLM10701SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM10701SD?
You can download the SLM10701SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM10701SD?
SAMTEC
