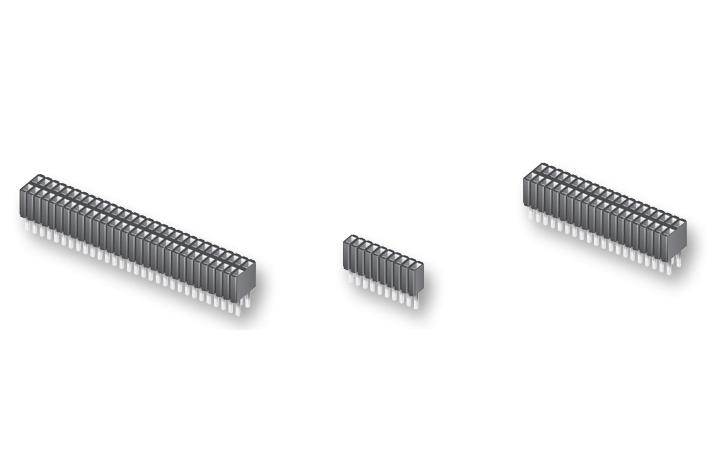

SAMTEC SLM11301SS Micro Socket
The SLM series through-hole micro sockets are high-precision components designed for reliable electrical connections in compact electronic assemblies. Made with durable black glass-filled polyester insulators and phosphor bronze contacts plated with matte tin or gold, these sockets support operating temperatures from -55°C to +125°C. They feature insertion depths ranging from 2.03 mm to 3.43 mm, each capable of carrying up to 5 A per pin. The sockets ensure minimal contact resistance of 10 mΩ and comply with RoHS standards for lead-free manufacturing, making them ideal for critical electronic applications.
SAMTEC SLM11301SS Micro Socket Specifications:
- Insulator Material: Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze with Platinum or Gold plating
- Plating: Matte Tin or Gold on contact, Ni on tail
- Current Rating: 5.0 A per pin (single row) with Gold plating, 3.0 A with Tin
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm to 3.43 mm (SLM); 3.43 mm to 6.35 mm (SMS)
- Insertion Force: 8 oz (2.22 N) on average
- Withdrawal Force: 6 oz (1.67 N) on average
- RoHS Compliant, Lead-Free Option Available
- Number of Pins: Varies per model, see specifications
- Dimensions: Length varies between 2.03 mm and 6.35 mm depending on model
- RoHS and REACH compliant, suitable for automated pick-and-place assembly
Buy the Samtec Series Micro Socket: SLM11301SS
Experience reliable and high-precision electrical connections with the Samtec Micro Socket. Crafted with durable materials supporting up to 5 amps per pin, these sockets operate within a temperature range of -55°C to +125°C. Ideal for compact electronic assemblies, they feature easy insertion and withdrawal, with RoHS compliance for environmentally safe manufacturing. Whether for testing, prototyping, or final product assembly, order the Samtec Micro Socket online today for quick delivery and unmatched quality. Designed to meet industrial standards for durability and performance, making them a valuable component for electronics professionals.
Get Samtec SLM11301SS today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SLM11301SS?
You can click on the BUY or RFQ button to purchase SLM11301SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM11301SS?
You can download the SLM11301SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM11301SS?
SAMTEC
