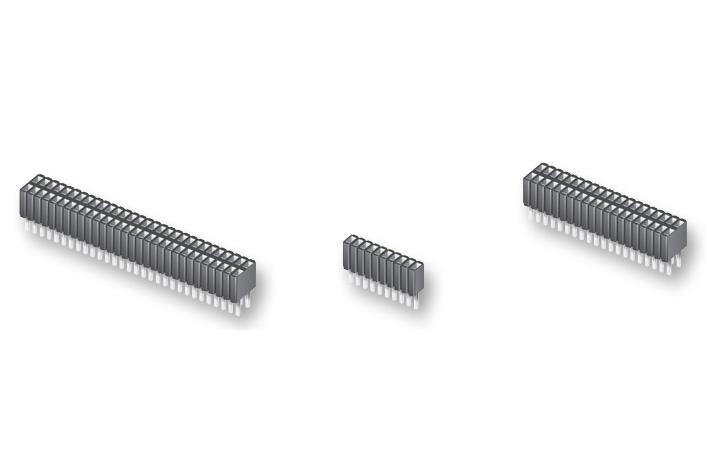

SAMTEC SLM12401SD Electronic Connector
The product is a high-performance electronic connector designed for robust signal and power transfer in demanding environments. Made with black glass-filled polyester insulators and phosphor bronze contacts, it features gold or tin plating over nickel, ensuring reliable conductivity and corrosion resistance. With a current rating of 5.2A per pin for SLMTs and 5.0A per pin for SMS/TMS, it operates effectively within a temperature range of -55°C to +125°C with gold plating. The connector's versatile insertion depths and RoHS compliance make it suitable for a wide range of electronic assemblies and industrial applications, providing dependable connectivity under challenging conditions.
SAMTEC SLM12401SD Electronic Connector Specifications:
- Insulator Material: Black Glass-Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin over 50u" Nickel
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm (.080") to 3.05 mm (.120") for SLM, 3.43 mm (.135") to 6.35 mm (.250") with 0.38 mm (.015") wipe for SMS
- Insertion Force: 8.02 N (0.81 kgf), Withdrawal Force: 6.02 N (0.61 kgf)
- RoHS Compliant: Yes
- Processing: Wave Solderable (SLM), Solderable (SMS)
- Lead-Free Soldering: Yes
Buy the Buy Samtec SLM12401SD Part Number SLM12401SD Online
Enhance your electronic assemblies with this high-quality connector featuring gold or tin plating for durability and corrosion resistance. Designed with a black glass-filled polyester insulator and phosphor bronze contacts, it supports high current ratings up to 5.2A per pin. Suitable for demanding industrial and electronic applications, it operates reliably across wide temperature ranges from -55°C to +125°C with gold plating. Easy to process with RoHS compliance, ensuring safe, lead-free soldering for a wide range of manufacturing needs.
Buy Samtec SLM12401SD now and experience unmatched reliability and performance in electronic connectivity solutions.
Frequently Asked Questions
Where can I buy SAMTEC SLM12401SD?
You can click on the BUY or RFQ button to purchase SLM12401SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM12401SD?
You can download the SLM12401SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM12401SD?
SAMTEC
