SAMTEC SLM12501SD High-Performance Connector
The SLM12501SD is a high-performance, RoHS-compliant connector designed for reliable electrical connections in various electronic applications. Crafted with black glass-filled polyester insulators and phosphor bronze contacts, it features gold or tin plating over nickel. Rated for 5.2A per pin with operating temperatures from -55°C to +125°C (gold) and -55°C to +105°C (tin), it offers an insertion depth of 2.03mm to 3.05mm. Its durable construction ensures optimal contact resistance and ease of processing for wave or soldering techniques, making it ideal for demanding circuit assembly.
SAMTEC SLM12501SD High-Performance Connector Specifications:
- Insulator Material: Black Glass-filled Polyester
- Contact Material: Phosphor Bronze
- Plating Options: Au or Sn over 50µ" (1.27 µm) Ni
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03mm to 3.05mm (SLM), 3.43mm to 6.35mm (SMS)
- Insertion Force: 8.02 N (0.82 kgf)
- Withdrawal Force: 6.02 N (0.61 kgf)
- RoHS compliant: Yes
- Processing: Lead-Free Solderable with Wave Solder (SLM), Solder (SMS)
- Certifications: Recognized for quality standards
- Additional features include various plating options and multiple lengths for customized configurations

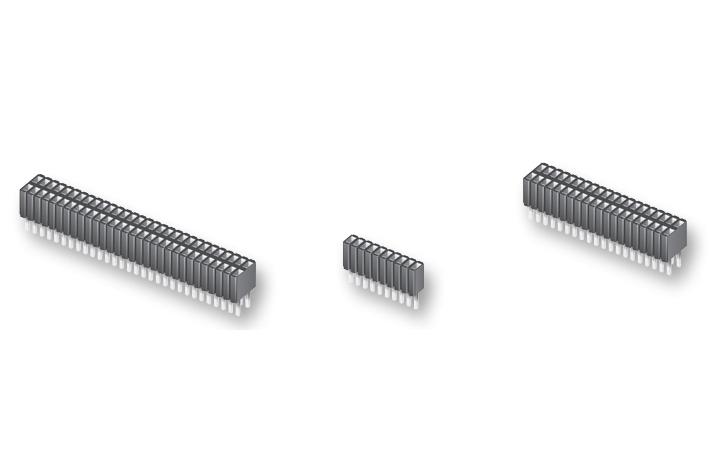

Buy the Buy Samtec SLM12501SD Part Number SLM12501SD Online
Secure your electronic assemblies with the SLM12501SD connector, featuring gold or tin plating, rated for 5A per pin. Its robust construction ensures long-term reliability across a wide temperature range. Designed for easy processing with wave or solder techniques, it offers versatile insertion depths and excellent contact resistance. This RoHS-compliant connector is suitable for demanding applications where durability, safety, and optimal electrical performance are essential. Order online today for fast delivery and quality assurance.
Buy Samtec SLM12501SD now and experience unmatched reliability and performance in high-current, durable connectors.
Frequently Asked Questions
Where can I buy SAMTEC SLM12501SD?
You can click on the BUY or RFQ button to purchase SLM12501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM12501SD?
You can download the SLM12501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM12501SD?
SAMTEC
