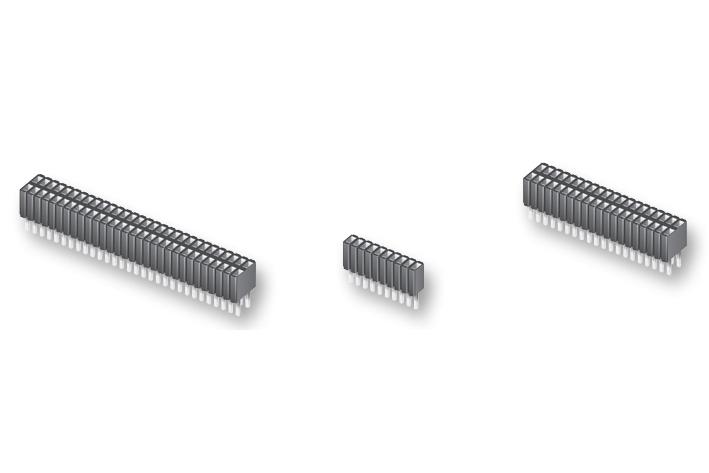

SAMTEC SLM12701SD Rectangular Connector Module
The SLM12701SD is a high-performance rectangular connector featuring black glass-filled polyester insulators and phosphor bronze contacts with gold or tin plating for excellent conductivity and corrosion resistance. Operating within a temperature range of -55°C to +125°C with gold plating, it offers a current rating of 5.2A per pin and an insertion depth between 2.03mm to 3.05mm, depending on the model. This RoHS-compliant connector provides low contact resistance of 10mΩ and is suitable for use in demanding industrial and electronic applications.
SAMTEC SLM12701SD Rectangular Connector Module Specifications:
- Insulator Material: Black Glass-filled Polyester (SLM) or Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50μ" (1.27μm) Ni
- Current Rating: 5.2A per pin with gold plating, 5.0A with tin plating
- Operating Temp Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Contact Resistance: 10mΩ
- Insertion Depth: 2.03mm to 3.05mm (SLM), 3.43mm to 6.35mm (SMS)
- Withdrawal Force: 6.02N (1.67N average)
- Insertion Force: 8.02N (2.22N average)
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable – SLM: wave only, SMS: yes
- Connections: Suitable for high-density electronic and industrial use
Buy the Buy Samtec SLM12701SD Part Number SLM12701SD Online
Purchase the Samtec SLM12701SD online today—engineered for high-performance electronic connections. Featuring phosphor bronze contacts with gold or tin plating, this connector operates within a temperature range of -55°C to +125°C, ensuring durability in demanding environments. Its RoHS compliance and low contact resistance of 10mΩ make it ideal for industrial and electronic applications requiring reliable and long-lasting connections. With a current rating of 5.2A per pin and various insertion depths, this connector combines quality, durability, and versatility, making it a valuable addition to your electronic assembly or manufacturing process.
Get Samtec SLM12701SD today—built for high performance, corrosion resistance, and reliable electrical connectivity in demanding applications.
Frequently Asked Questions
Where can I buy SAMTEC SLM12701SD?
You can click on the BUY or RFQ button to purchase SLM12701SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM12701SD?
You can download the SLM12701SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM12701SD?
SAMTEC
