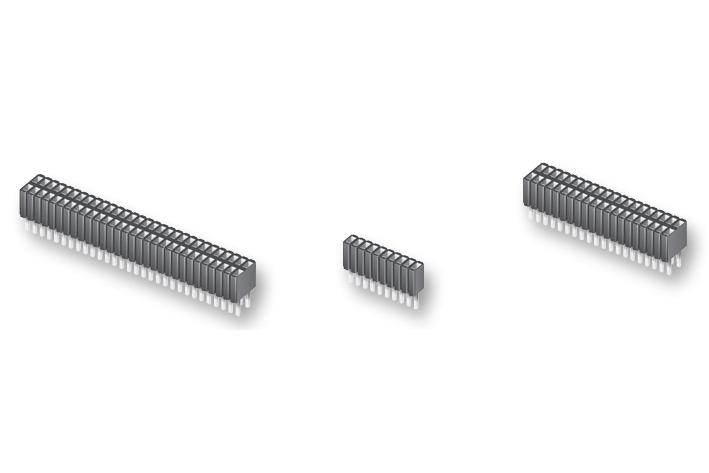

SAMTEC SLM12801SD Pin-header connector
The product is a high-quality, pin-header connector designed for reliable electrical connections in industrial applications. Made with phosphor bronze contacts and available with gold or tin plating over nickel, it offers low contact resistance of 10 milliohms and a high current rating of up to 5.2A per pin. Designed for operating temperatures from -55°C to +125°C with gold plating, it features easy insertion and withdrawal forces, ensuring durability and safety. Suitable for wave and hand soldering, this connector complies with RoHS standards, making it a versatile choice for manufacturing and electronic integration.
SAMTEC SLM12801SD Pin-header connector Specifications:
- Insulator Material: Black Glass Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Contact Resistance: 10 mQ
- Insertion Depth: 2.03 mm to 3.05 mm (SLM), 3.43 mm to 6.35 mm (SMS)
- Insertion Force: 8.02 N (avg.)
- Withdrawal Force: 6.02 N (avg.)
- RoHS Compliance: Yes
- Processing: Lead-Free, Solderable for Wave or Manual Soldering
- Dimensions: Length varies, typical tail length is 0.015" (0.38 mm) wipe
- Certifications: RoHS compliant
Buy the Samtec SLM12801SD – Reliable Connectors for Industrial Applications
Order the Samtec SLM12801SD pin-header connector online today for reliable performance in electronic assemblies. Featuring phosphor bronze contacts with gold or tin plating, it supports up to 5.2A per pin and operates efficiently across a temperature range of -55°C to +125°C. Easy to insert and remove, it ensures secure connections with low contact resistance. Fully RoHS compliant, this connector is ideal for automation, manufacturing, and electronic projects requiring high durability, precise contact fit, and excellent solderability. Purchase now for quality assured connectivity.
Get Samtec SLM12801SD today—designed for precision and long-lasting durability in industrial electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SLM12801SD?
You can click on the BUY or RFQ button to purchase SLM12801SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM12801SD?
You can download the SLM12801SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM12801SD?
SAMTEC
