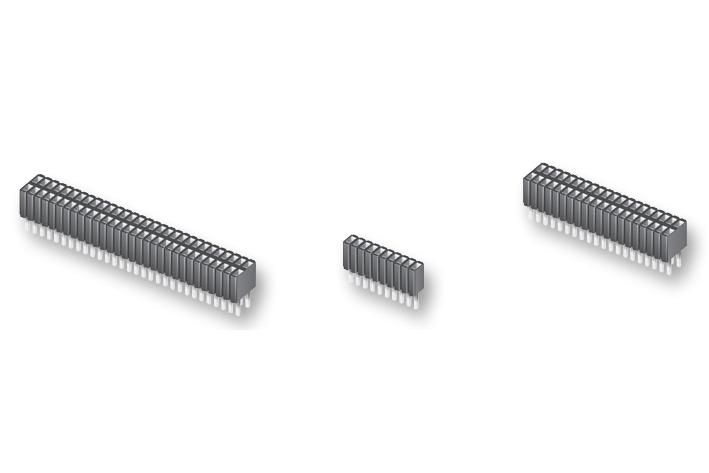

SAMTEC SLM13501SD Surface-Mount Female Socket Connector
The product is a high-quality surface-mount female socket connector designed for reliable electrical connections in industrial and electronic applications. Made with black glass-filled polyester insulators and phosphor bronze contacts, it offers excellent durability and corrosion resistance. Suitable for lead-free soldering processes and RoHS compliance, this connector supports up to 5.2A per pin with operating temperatures from -55°C to +125°C. It features a customizable insertion depth ranging from 0.080" to 0.250" and provides low contact resistance of 10 mΩ, ensuring dependable performance in high-demand environments.
SAMTEC SLM13501SD Surface-Mount Female Socket Connector Specifications:
- Insulator Material: Black Glass Filled Polyester (SLM), Black LCP (SMS)
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" nickel
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.080" to 0.250" (2.03mm to 6.35mm)
- Insertion Force: 8.02 N (2.22 lb) average
- Withdrawal Force: 6.02 N (1.67 lb) average
- RoHS compliant, Lead-Free solderable (SLM wave solder only, SMS: yes)
- Available with Matte Tin or other platings, multiple options and lengths
- Supported for high-reliability applications with RoHS and quality certifications
Buy the Samtec SLM13501SD – Reliable Connectors for Industrial Applications
Purchase your Samtec SLM13501SD today and enjoy fast online ordering for this high-quality, RoHS-compliant connector. Designed for reliable, high-current connections, it features adjustable insertion depths from 0.080" to 0.250", high durability with phosphor bronze contacts, and surface-mount technology suitable for industrial and electronic applications. Whether you need gold or tin plating, this connector ensures low contact resistance of 10 mΩ and excellent temperature stability from -55°C to +125°C. Order now and secure dependable performance for your manufacturing or assembly projects.
Order your Samtec Series SLM13501SD connector today and ensure your projects benefit from durable, high-performance electrical connections.
Frequently Asked Questions
Where can I buy SAMTEC SLM13501SD?
You can click on the BUY or RFQ button to purchase SLM13501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM13501SD?
You can download the SLM13501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM13501SD?
SAMTEC
