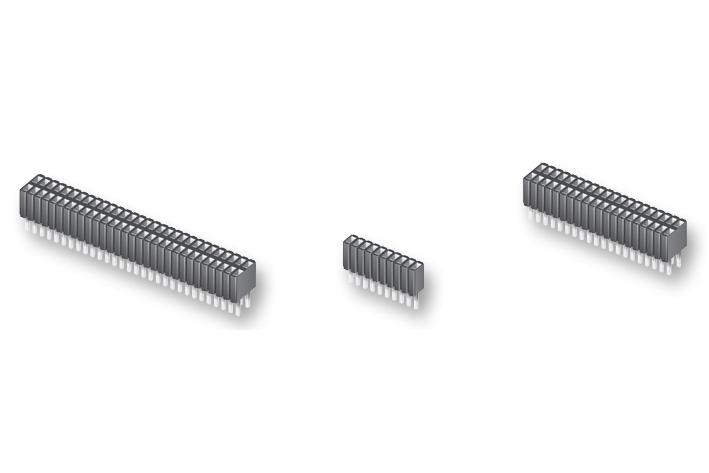

SAMTEC SLM13601SS High Current Connector
The connector offers high-current ratings of 5.2A per pin with durable contact materials like phosphor bronze and gold or tin plating, ensuring solid electrical performance up to 125°C. Designed with black glass-filled polyester and black LCP insulators, it features flexible insertion depths from 2.03 mm to 6.35 mm for versatile applications. Insertion and withdrawal forces are optimized for easy handling, while RoHS compliance ensures environmental standards. Suitable for high-reliability electronic assemblies, this connector is compatible with wave or reflow soldering processes, making it ideal for demanding industrial and consumer electronics.
SAMTEC SLM13601SS High Current Connector Specifications:
- Insulator Material: SLM: Black Glass Filled Polyester; SMS: Black LCP
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50u" Ni
- Current Rating: 5.2A per pin (SLM), 5.0A per pin (SMS/TMS)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.03 mm (.080") to 6.35 mm (.250") with 0.38 mm (.015") wipe
- Insertion Force: 8.02 N (2.22 lb) on single contact
- Withdrawal Force: 6.02 N (1.67 lb) on single contact
- RoHS Compliant: Yes
- Processing: Lead-Free, Wave Solderable for SLM, Yes for SMS
- Dimensions: Length varies with option, with optional plating on tails
- Certifications: RoHS compliant, recognized for quality
Buy the Buy Samtec SLM13601SS Part Number SLM13601SS Online
Secure your electronic connections today with the Samtec High Current Connector. Designed with robust materials and flexible insertion depths, it supports high-current ratings of 5.2A per pin, making it perfect for industrial and consumer electronics. Featuring gold or tin plating, RoHS compliance, and compatibility with wave or reflow soldering, this connector guarantees durability and performance under harsh conditions. Order now to ensure reliable, efficient, and environmentally compliant connectivity for your projects, backed by trusted quality standards.
Get Samtec SLM13601SS today—built for high-current applications, durability, and reliable electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC SLM13601SS?
You can click on the BUY or RFQ button to purchase SLM13601SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLM13601SS?
You can download the SLM13601SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLM13601SS?
SAMTEC
