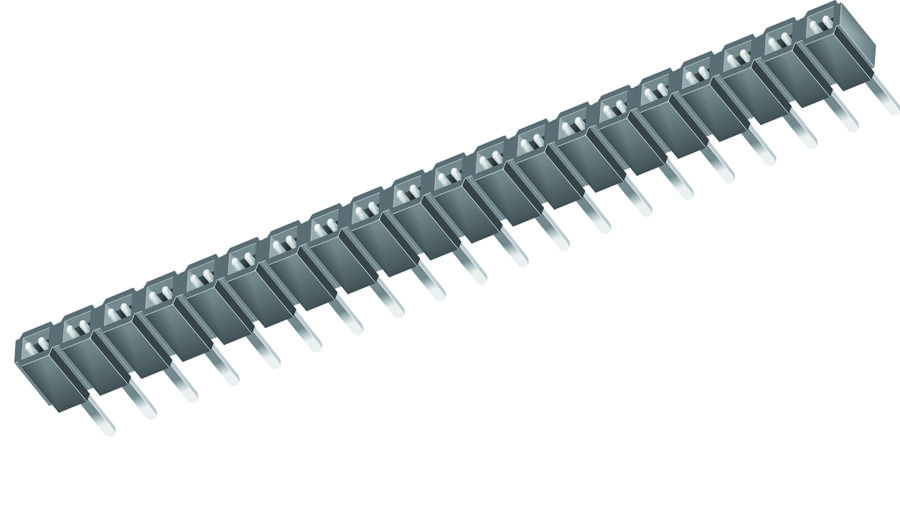

SAMTEC SLW10301TS Low-Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a reliable connection solution for a variety of applications. Constructed with a black G.F. Polyester insulator and phosphor bronze contacts, these strips are available with gold or tin plating options to suit different needs. They mate with a range of connectors including TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, and SLW, providing versatility in design. With a current rating of up to 5.5 A per pin and a voltage rating of 406 VAC, these socket strips are suitable for demanding environments. They are RoHS compliant and lead-free solderable, making them an environmentally responsible choice.
SAMTEC SLW10301TS Low-Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulator, Phosphor Bronze Contacts
- Plating Options: Gold flash, Matte Tin, or Gold over Nickel
- Contact Plating: 10 µ” (0.25 µm) Gold, 50 µ” (1.27 µm) Ni, 20 µ” (0.51 µm) Gold flash, Matte Tin
- Current Rating: 5.2 A per pin (SLW/TSW), 5.5 A per pin (TSW/CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temperature: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Insertion Depth: SLW: 2.16 mm to 2.92 mm, CES: 2.62 mm to 4.06 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: No, Lead Wave only
Buy the SLW-103-01-T-S SAMTEC Low-Profile Socket Strip | myMectronic
Purchase the SLW-103-01-T-S from SAMTEC with confidence and security.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW10301TS?
You can click on the BUY or RFQ button to purchase SLW10301TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10301TS?
You can download the SLW10301TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10301TS?
SAMTEC
