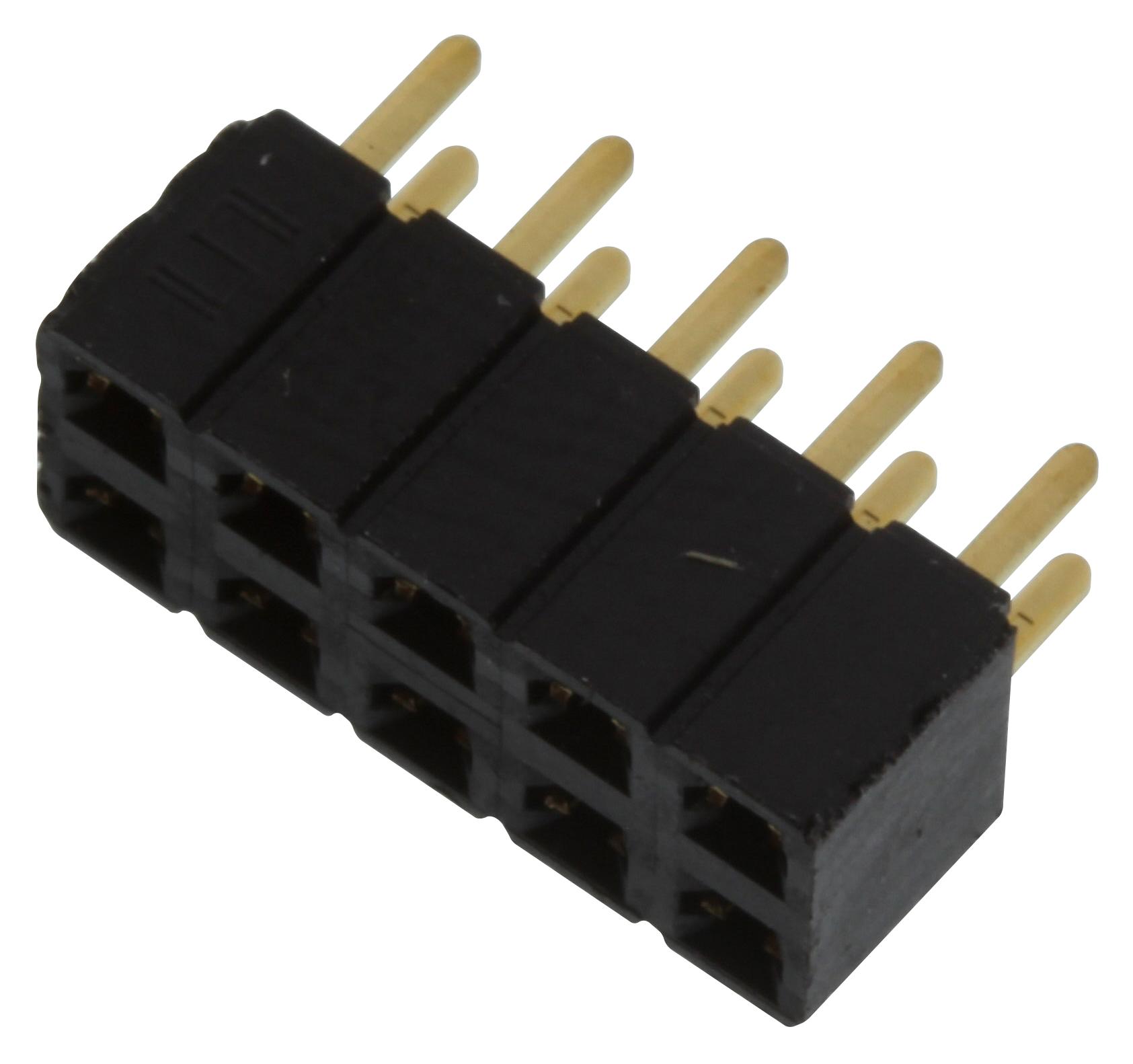

SAMTEC SLW10501GD Low-Profile Socket Strip
The SAMTEC SLW series low-profile socket strips are designed for high-density applications requiring reliable and compact connections. These strips mate with a variety of SAMTEC connectors, offering versatility in system design. They feature black G.F. Polyester insulation and phosphor bronze contacts, available with gold or tin plating options to suit different current and voltage requirements. Suitable for operating temperatures ranging from -55°C to +125°C (with gold plating) or -55°C to +105°C (with tin plating), these socket strips are ideal for industrial and commercial applications.
SAMTEC SLW10501GD Low-Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulation, Phosphor Bronze Contacts
- Plating Options: Gold flash, Matte Tin, 10µ” Gold, 50µ” Ni, 20µ” Gold flash
- Current Rating: 5.2 A per pin (SLW/TSW), 5.5 A per pin (CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temperature: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Insertion Depth: SLW: 2.16 mm to 2.92 mm, CES: 2.62 mm to 4.06 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: No, Lead Wave only
Buy the SLW-105-01-G-D SAMTEC Low-Profile Socket Strip | myMectronic
Securely purchase the SLW-105-01-G-D connector online and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW10501GD?
You can click on the BUY or RFQ button to purchase SLW10501GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10501GD?
You can download the SLW10501GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10501GD?
SAMTEC
