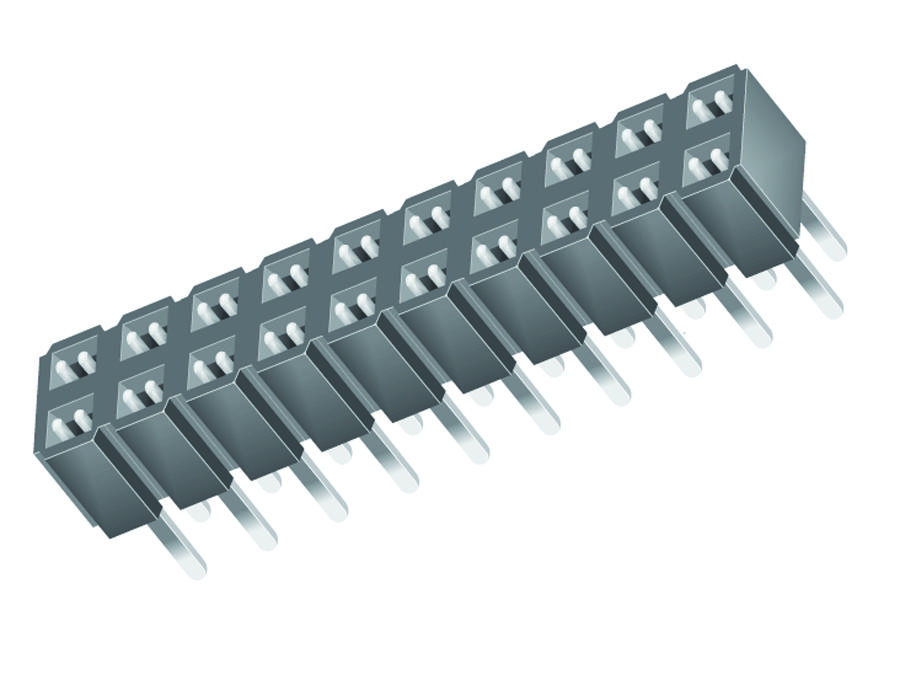

SAMTEC SLW10501TD Low Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a compact and reliable connection solution for a wide range of applications. These strips are designed to mate with various connector types, providing flexibility in system design. Constructed with a durable black G.F. Polyester insulator and phosphor bronze contacts, they ensure long-lasting performance. Available with different plating options, including gold flash and matte tin, to meet specific current and voltage requirements. Suitable for applications requiring a low-profile design and robust electrical connections.
SAMTEC SLW10501TD Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulator, Phosphor Bronze Contacts
- Plating Options: Gold flash, Matte Tin
- Contact Material: Phosphor Bronze
- Current Rating: 5.2 A per pin (SLW/TSW), 5.5 A per pin (TSW/CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temperature: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Insertion Depth: SLW: 2.16 mm to 2.92 mm, CES: 2.62 mm to 4.06 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: No, Lead Wave only
- Mates With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW
Buy the SLW-105-01-T-D SAMTEC Low Profile Socket Strip | myMectronic
Purchase the SLW-105-01-T-D from SAMTEC with confidence and security.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW10501TD?
You can click on the BUY or RFQ button to purchase SLW10501TD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10501TD?
You can download the SLW10501TD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10501TD?
SAMTEC
