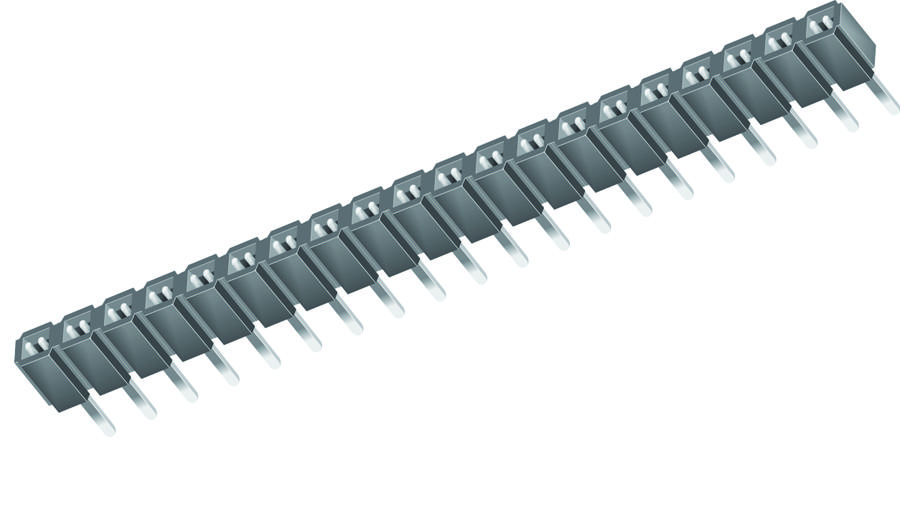

SAMTEC SLW10501TS Low-Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a reliable connection solution for a variety of applications. These strips are designed for use with a range of compatible connectors, providing flexibility in system design. Constructed with a durable black G.F. Polyester insulator and phosphor bronze contacts, the SLW series ensures long-lasting performance. Available with different plating options, including gold flash and matte tin, these socket strips cater to diverse electrical and environmental requirements. They are suitable for applications requiring a compact and robust connection solution.
SAMTEC SLW10501TS Low-Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulator, Phosphor Bronze Contacts
- Plating_Options: Gold flash on contact, Matte Tin on tail; 10 µ” Gold on contact, Matte Tin on tail; 20 µ” Gold on contact, Gold flash on balance; Matte Tin
- Current_Rating_SLW: 5.2 A per pin (2 pins powered)
- Current_Rating_CES: 5.5 A per pin (2 pins powered)
- Voltage_Rating_SLW: 406 VAC
- Voltage_Rating_CES: 400 VAC
- Operating_Temperature_Range_Gold: -55 °C to +125 °C
- Operating_Temperature_Range_Tin: -55 °C to +105 °C
- Insertion_Depth_SLW: 0.085" to 0.115"
- Insertion_Depth_CES: 0.103" to 0.160"
- RoHS_Compliant: Yes
- Lead_Free_Solderable: No, Lead Wave only
- Mates_With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW
