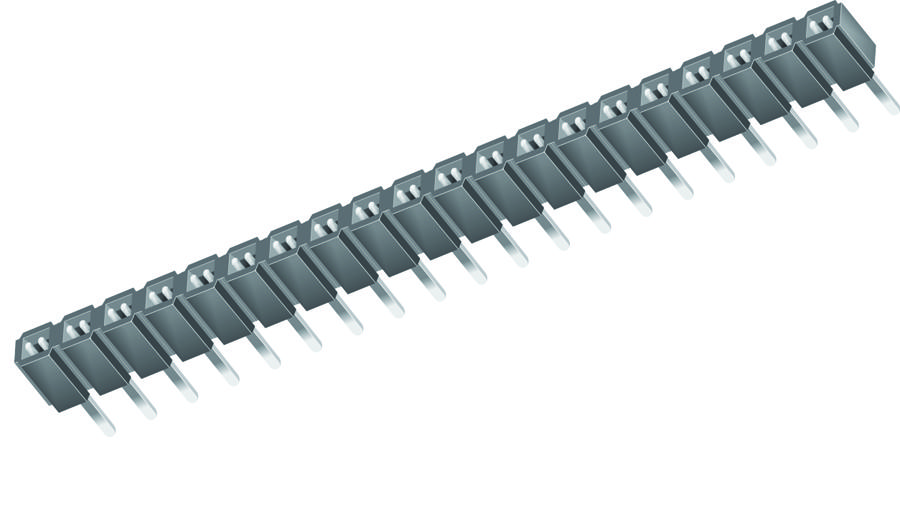

SAMTEC SLW10801TS Low Profile Socket Strip
The SAMTEC SLW series socket strips are low-profile connectors designed for high-density applications. These strips mate with TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, and SLW connectors, offering versatility in system design. Constructed with a black G.F. Polyester insulator and phosphor bronze contacts, the SLW series provides reliable electrical connections. Available with various plating options, including gold flash, 10µ” gold, and matte tin, these socket strips cater to a wide range of current and voltage requirements. They are ideal for applications in telecommunications, data acquisition, and industrial automation where space is limited and reliable connectivity is essential.
SAMTEC SLW10801TS Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulator, Phosphor Bronze Contacts
- Plating Options: Gold flash, 10µ” Gold, Matte Tin
- Current Rating: 5.2 A per pin (SLW/TSW), 5.5 A per pin (TSW/CES) (2 pins powered)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temperature: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Insertion Depth: SLW: 2.16 mm to 2.92 mm, CES: 2.62 mm to 4.06 mm
- RoHS Compliant: Yes
- Lead-Free Solderable: No, Lead Wave only
Buy the SLW-108-01-T-S SAMTEC Low Profile Socket Strip | myMectronic
Purchase the SAMTEC SLW-108-01-T-S socket strip securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW10801TS?
You can click on the BUY or RFQ button to purchase SLW10801TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10801TS?
You can download the SLW10801TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10801TS?
SAMTEC
