SAMTEC SLW11001GS Single-Row Connector
The SLW-110-01-G-S is a high-quality, single-row connector designed with phosphor bronze contacts and gold or tin plating over 50 microinches of nickel. It features a 5.2 ampere current rating per pin, with a voltage rating of 250 VAC and an operating temperature range from -55°C to +105°C with tin plating, or -55°C to +125°C with gold plating. Its insulator material is black G.F. polyester, ensuring durability and electrical insulation. Suitable for a wide range of electronic and industrial applications requiring reliable and precise connections.
SAMTEC SLW11001GS Single-Row Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating Options: Au or Sn over 50μm Ni
- Insulator Material: Black G.F. Polyester
- Current Rating: 5.2A per pin
- Voltage Rating: 250 VAC
- Operating Temp Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Measurement Dimensions: 2.54 mm (0.100 inches), 2.92 mm (0.115 inches), 4.08 mm (0.160 inches)
- Insertion Force: 0.025 inches SQ pin, 80 oz average
- Withdrawal Force: 0.025 inches SQ pin, 40 oz average
- Certifications: OHS Compliant
- RoHS: Lead-Free Solderable (Wave only)

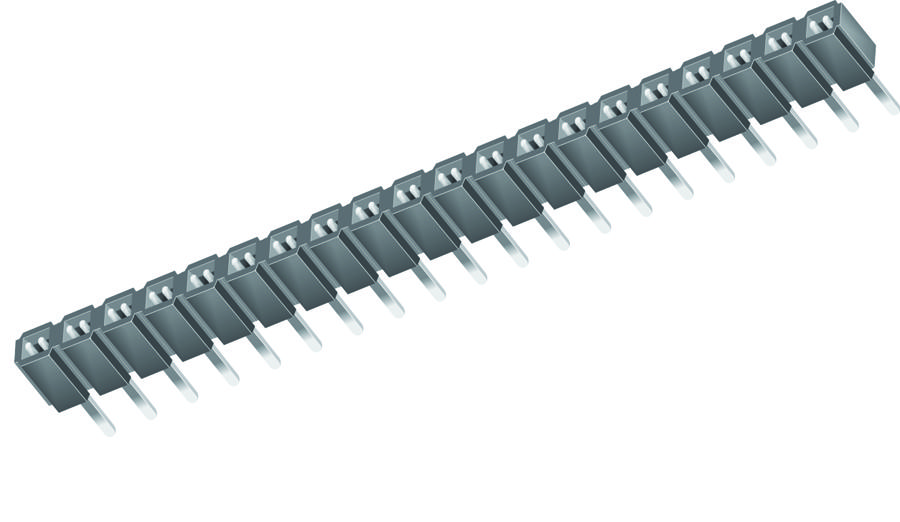

Buy the Buy Samtec SLW-110-01-G-S Part Number SLW11001GS Online
Purchase the Samtec SLW-110-01-G-S connector online today for your electronic or industrial projects. This high-quality, single-row connector features phosphor bronze contacts, with options for gold or tin plating, offering excellent electrical performance and corrosion resistance. It supports 5.2 amps per pin and is rated for 250 VAC, suitable for a variety of high-reliability applications. Easy to install with a compact design, ensuring precise, secure connections in demanding environments. Order now for fast delivery and guaranteed quality.
Get Samtec SLW-110-01-G-S today—designed for reliable high-current connections with gold or tin plating for long-term durability.
Frequently Asked Questions
Where can I buy SAMTEC SLW11001GS?
You can click on the BUY or RFQ button to purchase SLW11001GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW11001GS?
You can download the SLW11001GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW11001GS?
SAMTEC
