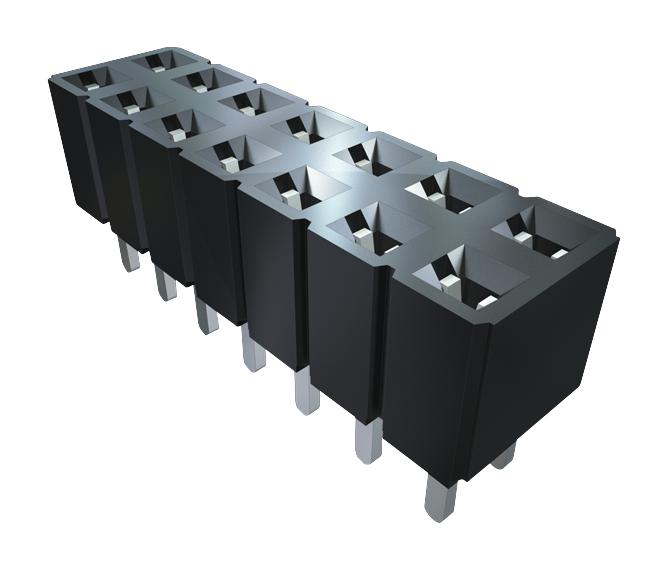

SAMTEC SLW11401TS Low-Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a reliable connection solution for a variety of applications. These strips are designed for use with a range of compatible connectors, including TLW and TSW, and feature a robust construction with a black G.F. Polyester insulator and phosphor bronze contacts. Available with different plating options like gold flash or matte tin, the SLW series provides flexibility for diverse electrical and mechanical requirements. They are suitable for applications requiring a low-profile design and reliable signal transmission.
SAMTEC SLW11401TS Low-Profile Socket Strip Specifications:
- Material: Black G.F. Polyester Insulator, Phosphor Bronze Contacts
- Plating_Options: Gold flash on contact, Matte Tin on tail, 10 µ” Gold on contact, Matte Tin on tail, 50 µ” Ni, 20 µ” Gold on contact, Gold flash on balance, Matte Tin
- Current_Rating_SLWTSW: 5.2 A per pin (2 pins powered)
- Current_Rating_TSWCES: 5.5 A per pin (2 pins powered)
- Voltage_Rating_SLW: 406 VAC
- Voltage_Rating_CES: 400 VAC
- Operating_Temperature_Gold: -55 °C to +125 °C
- Operating_Temperature_Tin: -55 °C to +105 °C
- Insertion_Depth_SLW: (2.16 mm) .085" to (2.92 mm) .115"
- Insertion_Depth_CES: (2.62 mm) .103" to (4.06 mm) .160"
- RoHS_Compliant: Yes
- Lead_Free_Solderable: No, Lead Wave only
- Mates_With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW, HMTSW, TSM
Buy the SLW-114-01-T-S SAMTEC Low-Profile Socket Strip | myMectronic
Purchase the SLW-114-01-T-S from SAMTEC with confidence and security.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW11401TS?
You can click on the BUY or RFQ button to purchase SLW11401TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW11401TS?
You can download the SLW11401TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW11401TS?
SAMTEC
