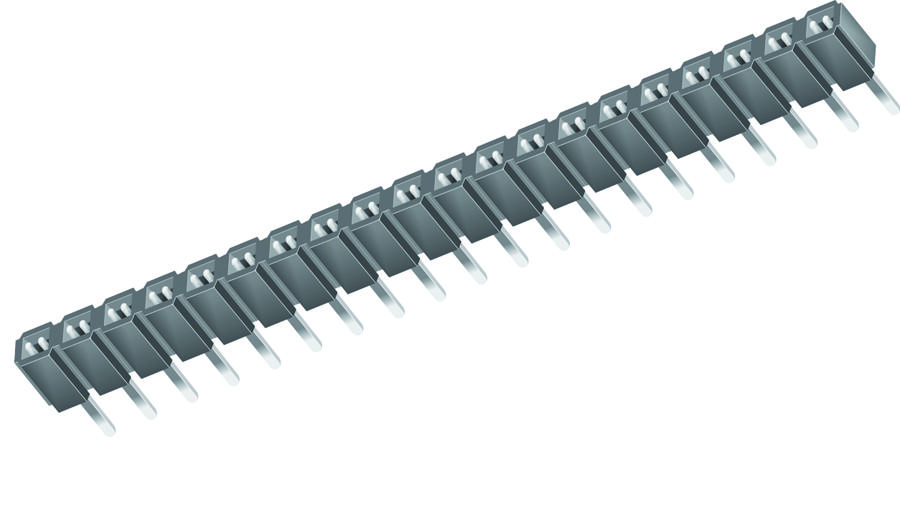

SAMTEC SLW12001GS Socket Strip
The SLW-120-01-G-S is a 20-position, single-row, low-profile socket strip designed for reliable connections in industrial environments. Featuring gold-plated contacts on phosphor bronze with a 20-micron gold flash, it offers high conductivity and corrosion resistance. The black fiberglass polyester insulator ensures durability and heat resistance. Compatible with surface-mount terminal strips such as TLW, TSW, MTLW, and others, it operates within a temperature range of -55°C to 125°C, making it ideal for demanding industrial applications requiring secure and durable electrical connections.
SAMTEC SLW12001GS Socket Strip Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au over 20u" (0.50 μm) Ni flash
- Insulator Material: Black G.F. Polyester
- Number of Positions: 20
- Operating Temp Range: -55°C to +125°C
- Voltage Rating: 406 VAC
- Current Rating: 5.2 A per pin
- Insertion Force: 80z ± 10z average
- Withdrawal Force: 6 oz ± 1 oz average
- Dimensions: Length varies depending on the model, standard lengths include 10" (254 mm)
- Certifications: OHS Compliant
- Lead-Free Solderable: Wave only
- Compatible with surface-mount terminal strips including TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, HMTSW, TSM series
- Seam: Banded seam barrel
- Working Temperature Range: -55°C to +125°C
- Proper clearance and insulation are maintained for safe high-current connections
- Designed for robust industrial electronic connections with high reliability and corrosion resistance
Buy the Samtec SLW-120-01-G-S – Reliable Connectors for Industrial Applications
Purchase the Samtec SLW-120-01-G-S socket strip online today and enjoy high-quality, corrosion-resistant connections suitable for industrial applications. Featuring gold-plated contacts on phosphor bronze, it provides excellent conductivity and thermal stability. Its black fiberglass polyester insulator ensures durability under harsh conditions. With a temperature range from -55°C to 125°C, this 20-position single-row socket strip is compatible with various surface-mount terminal strips, making it ideal for complex electronic systems requiring secure and reliable connections. Shop now for fast delivery and competitive prices.
Get Samtec SLW-120-01-G-S today—built for precision, durability, and reliable electrical connections in demanding industrial environments.
