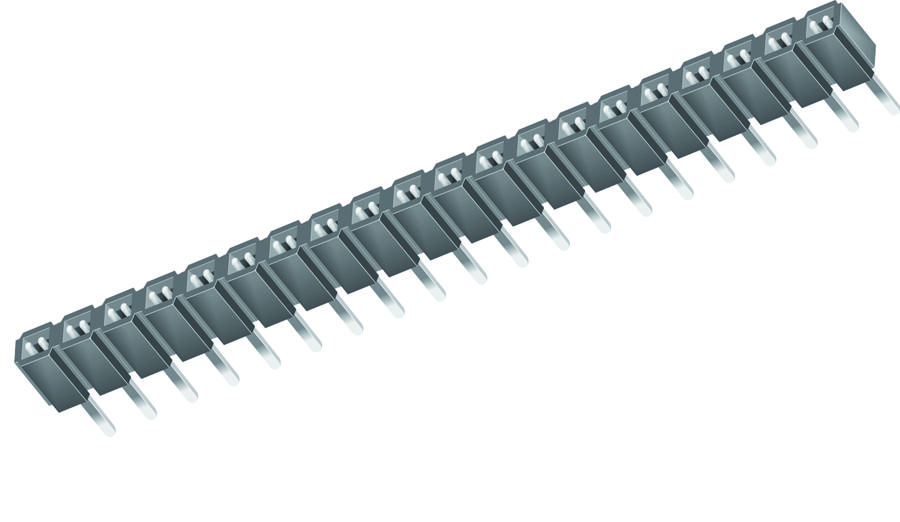

SAMTEC SLW14001TS Low Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a compact and reliable connection solution for a variety of applications. These strips are designed to mate with a range of connectors, including TLW, TSW, and MTLW, providing versatility in system design. Constructed with a black G.F. Polyester insulator and phosphor bronze contacts, the SLW series ensures durability and performance. Available with various plating options, such as gold flash or matte tin, these socket strips cater to diverse electrical and environmental requirements. They are suitable for applications requiring a low-profile design and reliable signal transmission.
SAMTEC SLW14001TS Low Profile Socket Strip Specifications:
- Mates With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW, HMTSW, TSM
- Insulator Material: Black G.F. Polyester
- Contact Material: Phosphor Bronze
- Plating Options: Gold flash, Matte Tin
- Current Rating (SLW/TSW): 5.2 A per pin (2 pins powered)
- Current Rating (TSW/CES): 5.5 A per pin (2 pins powered)
- Voltage Rating (SLW): 406 VAC
- Voltage Rating (CES): 400 VAC
- Operating Temperature Range (Gold): -55 °C to +125 °C
- Operating Temperature Range (Tin): -55 °C to +105 °C
- Insertion Depth (SLW): 0.085" to 0.115"
- Insertion Depth (CES): 0.103" to 0.160"
- RoHS Compliant: Yes
- Lead-Free Solderable: No, Lead Wave only
- Contact Plating Options: 10 µ" Gold, 50 µ" Ni, Matte Tin
- File No: E111594
