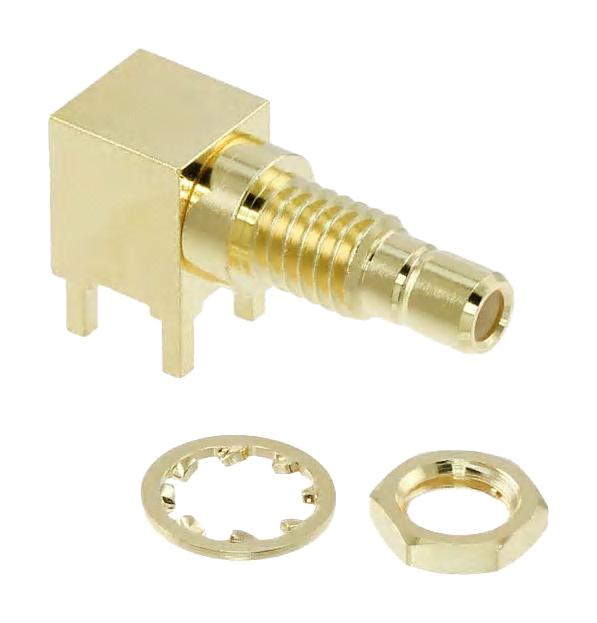

SAMTEC SMB5JPHRATH1 RF Connector
The SMB5J-P-XX-RA-TH1 is a right-angle, through-hole connector designed for 50-ohm impedance applications. Crafted with heavy gold and nickel plating, it ensures exceptional corrosion resistance and electrical performance. Featuring a compact, durable construction, this connector is suitable for PCB mounting in various RF and microwave systems. Its precise dimensions and critical tolerances guarantee reliable connections in high-frequency environments. Ideal for use in communications, test equipment, and embedded systems requiring robust and high-performance RF connectivity.
SAMTEC SMB5JPHRATH1 RF Connector Specifications:
- Impedance: 50 Ohm
- Plating: Heavy Gold / Nickel on contact and outer contact
- Material: Ni SSN 100 Ni on body
- Contact Material: Copper alloy with gold and nickel plating
- Configuration: Right angle, through-hole
- Maximum Panel Thickness: 3.81 mm (.150 inches)
- Recommended PCB Layer: 1.60 mm (.063 inches)
- Pushout Force for Insulator: 17.79 N (4.0 LB) minimum
- Certification: RoHS compliant
- Dimensions: Length 11.18 mm (.440 inches) reference, pin flush to body ±0.10 mm
- Insulators: Three-part insulator system, precisely positioned
- Connection Type: PCB mount for RF microwave systems
- Package: Parts are to be packaged in trays if less than half a tray
- Use: Suitable for RF, microwave, and communications applications
- Quality: Designed and dimensioned for reliable high-performance connections
