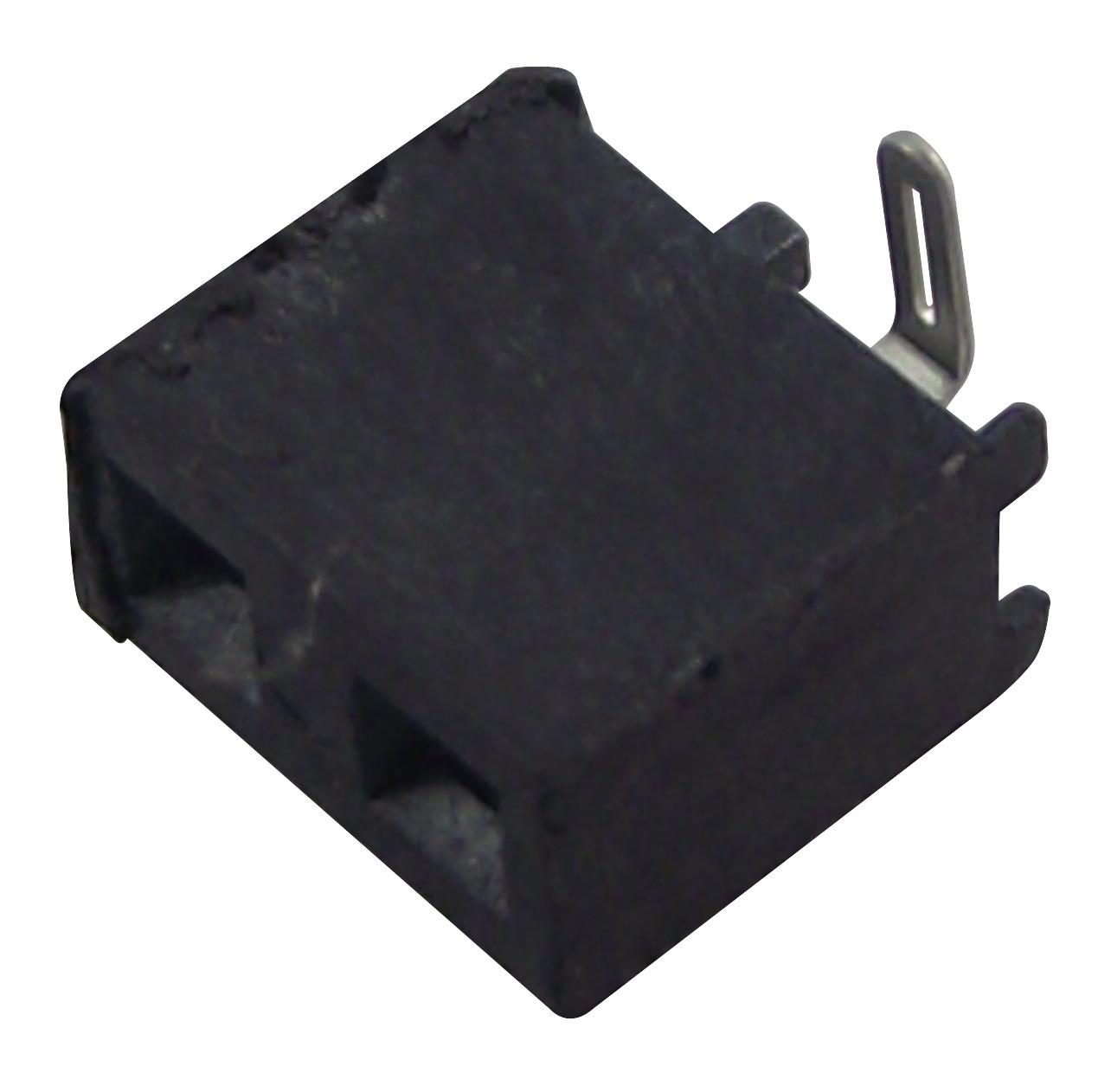

SAMTEC SMM10202SS Board-to-Board Connector
The SMM series features high-reliability board-to-board connectors with four-point redundancy, designed for demanding applications. Made from black Liquid Crystal Polymer and BeCu contact material, these connectors support a current rating of 3.2 A per pin and a voltage rating of 350 Vac. They operate within a temperature range of -55°C to +125°C, with low contact resistance of 10 milliohms. The connectors have an insertion depth of approximately 0.140 inches, with optional gold plating for extended lifespan and RoHS compliance. They are suitable for applications requiring high durability, precise alignment, and efficient signal integrity in compact electronic assemblies.
SAMTEC SMM10202SS Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu (Beryllium Copper)
- Plating: Sn or Au over Ni (50u")
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 Vac
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: Approximately 0.140 inches
- Gold Plating: Optional, for extended life
- RoHS Compliant: Yes
- Maximum Insertion Force: 10.0 lbf (0.56 N)
- Withdrawal Force: 1.5 lbf (0.42 N)
- Pitch: 0.0787 inches (2.00 mm)
- Processing: Lead-Free Solderable, SMT Coplanarity
- Additional Features: Locking clip, polarizing key options
Buy the Samtec Series SMM: High-Reliability Board-to-Board Connector
Enhance your electronic assemblies with the high-reliability Samtec Series SMM board-to-board connector. Designed for demanding applications, it features four-point redundancy, BeCu contacts, and optional gold plating for extended lifespan. With a current rating of 3.2 A per pin and operating at voltages up to 350 Vac, this connector supports temperatures from -55°C to +125°C. Easy to install with lead-free solderability and RoHS compliance, it offers excellent signal integrity and durability, making it an optimal choice for compact, reliable electronic designs.
Order your Samtec Series SMM connector today and ensure high durability and excellent electrical performance for demanding electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SMM10202SS?
You can click on the BUY or RFQ button to purchase SMM10202SS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM10202SS?
You can download the SMM10202SS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM10202SS?
SAMTEC
