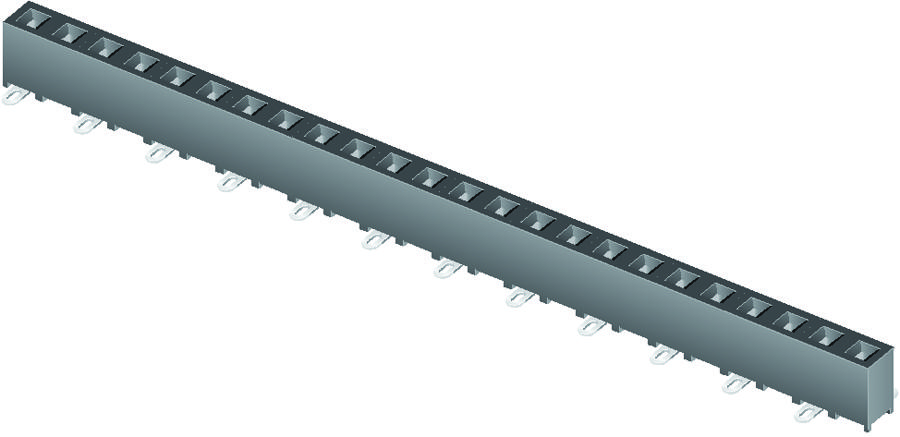

SAMTEC SMM10902SSP High-Reliability Board Connector
The SMM10902SSP is a high-reliability board mated connector featuring black Liquid Crystal Polymer insulation and BeCu contacts plated with Sn or Au over Ni. It supports operating temperatures from -55°C to +125°C and provides a current rating of 3.2 A per pin with a voltage rating of 350 VAC. The connector has an insertion depth of approximately 3.05 mm (0.120 inches) to 3.25 mm (0.128 inches), up to 100 cycles of durability, and is RoHS compliant with lead-free soldering capability. Suitable for demanding electronic applications requiring low maintenance and high performance.
SAMTEC SMM10902SSP High-Reliability Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 p" Ni (1.27 μm)
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 VAC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.05 mm (0.120") to 3.25 mm (0.128")
- Max Cycles: 100 with 10 μm Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samlec Series SMM High-Reliability Connector: SMM10902SSP
Order the high-reliability board connector from Samlec online today and enjoy fast shipping, secure purchase, and top performance in your electronic projects. Designed for durability, the SMM10902SSP with Liquid Crystal Polymer insulator and BeCu contacts offers excellent thermal stability and electrical performance. Perfect for demanding industrial and electronic applications, this connector supports up to 3.2 A per pin, operates from -55°C to +125°C, and is RoHS compliant. Trust in Samlec’s quality for your critical electronic needs and streamline your procurement process now.
Buy Samlec SMM10902SSP now and experience unmatched reliability and high-performance connection solutions for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SMM10902SSP?
You can click on the BUY or RFQ button to purchase SMM10902SSP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM10902SSP?
You can download the SMM10902SSP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM10902SSP?
SAMTEC
