SAMTEC SMM11002SMSK Edge Card Connector
The SMM11002SMSK is a high-reliability edge card connector designed for PCB applications, featuring a liquid crystal polymer insulator and BeCu contacts with optional gold or tin plating. It supports up to 3.2A per pin and 350VAC voltage rating, operating within -55°C to +125°C temperature range. The connector offers a 2.00 mm pitch, extended insertion depths between 3.05 mm and 3.56 mm, and high cycle life of up to 1000 cycles with gold plating. It ensures RoHS compliance, solderability, and easy mounting for reliable electronic connections.
SAMTEC SMM11002SMSK Edge Card Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 μ
- Voltage Rating: 350VAC
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.05 mm to 3.56 mm
- Max Cycles: 1000 cycles with gold plating
- RoHS Compliant: Yes
- Pitch: 2.00 mm
- Board Mates: Available with optional UCM Thin, Pick & Place Pads, Tiger Eye contacts
- Solderability: Contact samtec.com for detailed soldering info
- Certification: RoHS Compliant
- Lead Coplanarity: Compatible with SMT processes
- Note: Some lengths and styles are non-standard, non-returnable due to technical design updates
- RoHS: RoHS compliant, supporting environmentally friendly manufacturing
- Connector Type: Edge card connector for PCB, suitable for high-reliability electronic systems

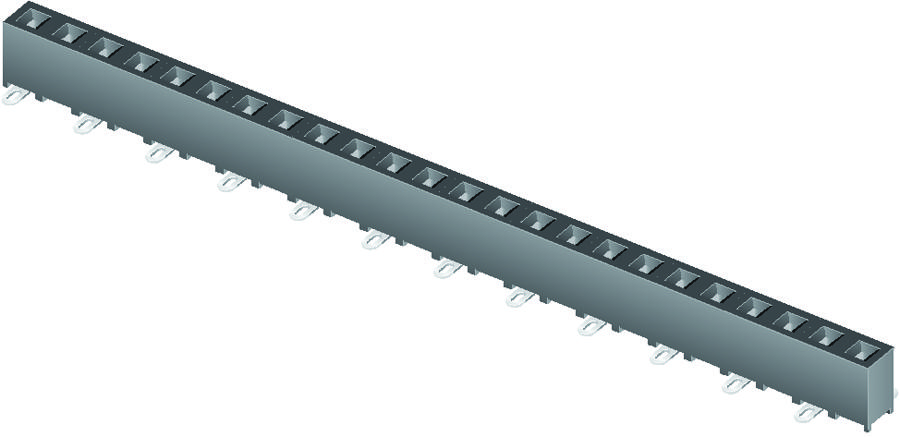

Buy the Samlec Series SMM Edge Card Connector: SMM11002SMSK
Purchase the Samlec SMM11002SMSK edge card connector online today and enjoy fast shipping, secure ordering, and exceptional quality. Designed for high-reliability PCB interfaces with liquid crystal polymer insulators and BeCu contacts, it supports up to 3.2A per pin and 350VAC. Its 2.00 mm pitch, extended insertion depths between 3.05 mm and 3.56 mm, and high cycle life of up to 1000 cycles with gold plating make it ideal for demanding electronic applications. RoHS compliant, solderable, and easy to install, this connector guarantees durable, safe, and efficient electronic connections for your projects.
Buy Samlec SMM11002SMSK now and experience unmatched reliability and performance in high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC SMM11002SMSK?
You can click on the BUY or RFQ button to purchase SMM11002SMSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM11002SMSK?
You can download the SMM11002SMSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM11002SMSK?
SAMTEC
