SAMTEC SMM11302SS05 PCB Connector
The SMM Series SMM11302SS05 is a high-reliability board mating connector utilizing Black Liquid Crystal Polymer insulators and BeCu contacts plated with Sn or Au over Ni. It offers a current rating of 3.2 A per pin, a voltage rating of 350 VAC, and an operating temperature range from -55°C to +125°C. Designed for PCB applications, it features optional UCM thin film, pick & place pads, and supports up to 100 insertion cycles. Compact with an insertion depth of approximately 3.05 mm, it is RoHS and lead-free compliant, suitable for demanding electronic systems.
SAMTEC SMM11302SS05 PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 μ" Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 VAC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: approximately 3.05 mm (0.120") to 3.25 mm (0.128")
- Max Cycles: 100
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Connector Lengths: options vary, some non-standard

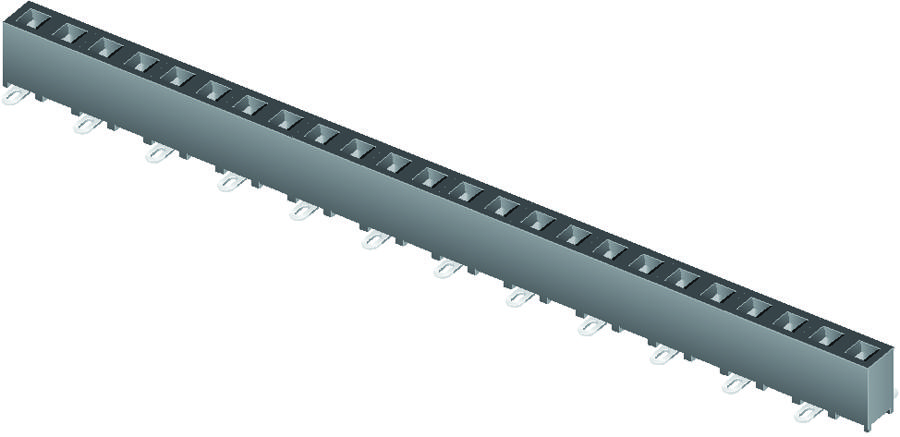

Buy the Samlec Series SMM PCB Connector: SMM11302SS05
Order the high-reliability PCB connector SMM11302SS05 online for your electronic projects. This connector features liquid crystal polymer insulators, BeCu contacts with gold or tin plating, and supports 3.2 A current at 350 VAC. It withstands temperature ranges from -55°C to +125°C and is RoHS compliant with lead-free design. Perfect for demanding PCB applications, it offers up to 100 insertion cycles, ensuring durability and consistent electrical performance in industrial electronics and consumer devices.
Get Samlec SMM11302SS05 today—built for high-reliability PCB connections and long-lasting electronic performance.
Frequently Asked Questions
Where can I buy SAMTEC SMM11302SS05?
You can click on the BUY or RFQ button to purchase SMM11302SS05 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM11302SS05?
You can download the SMM11302SS05 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM11302SS05?
SAMTEC
